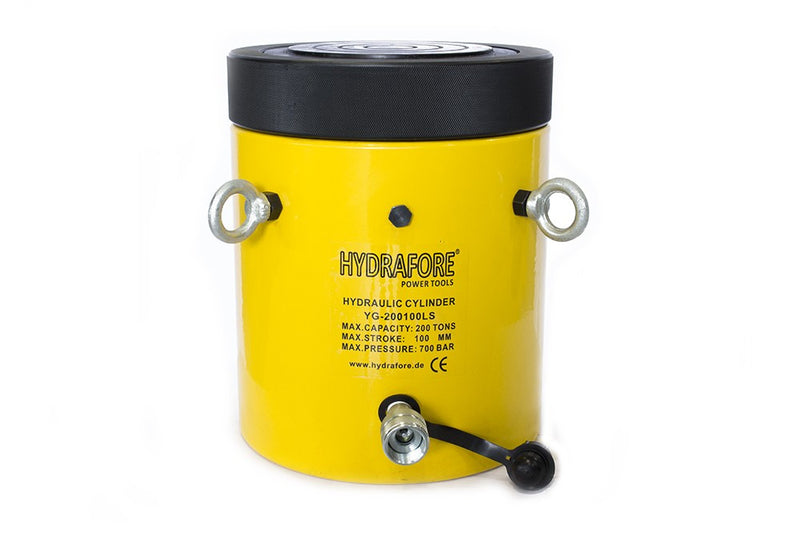

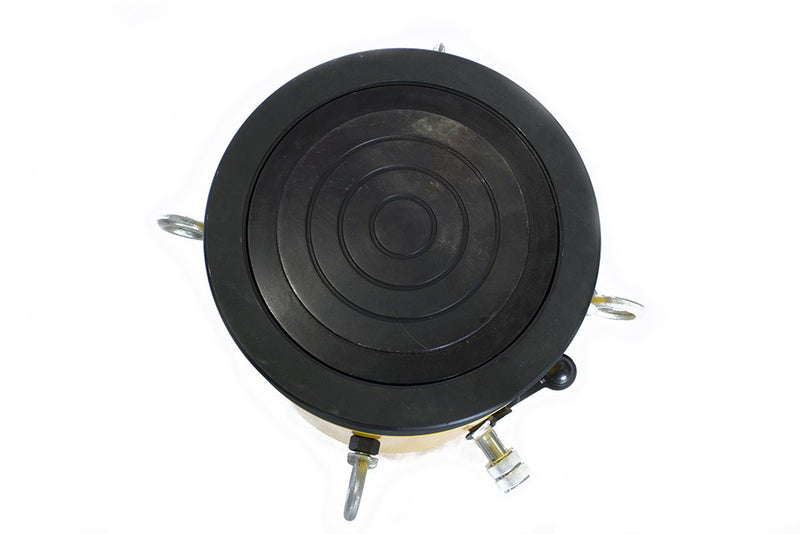

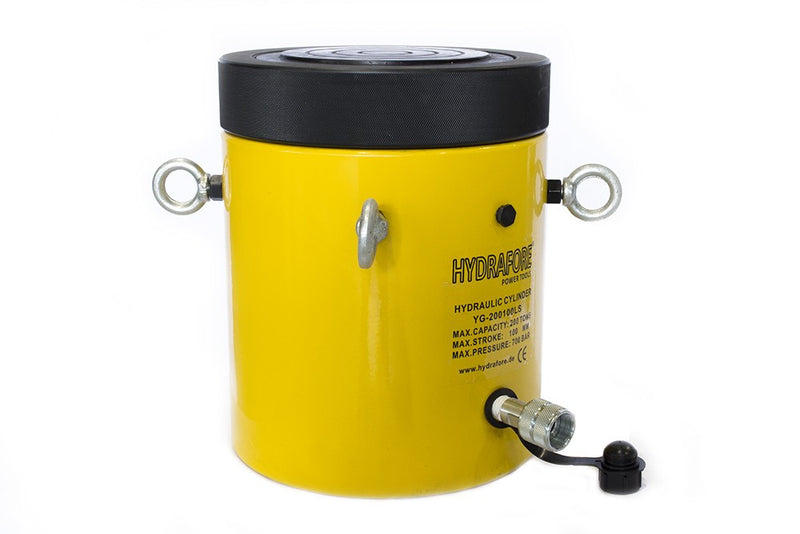

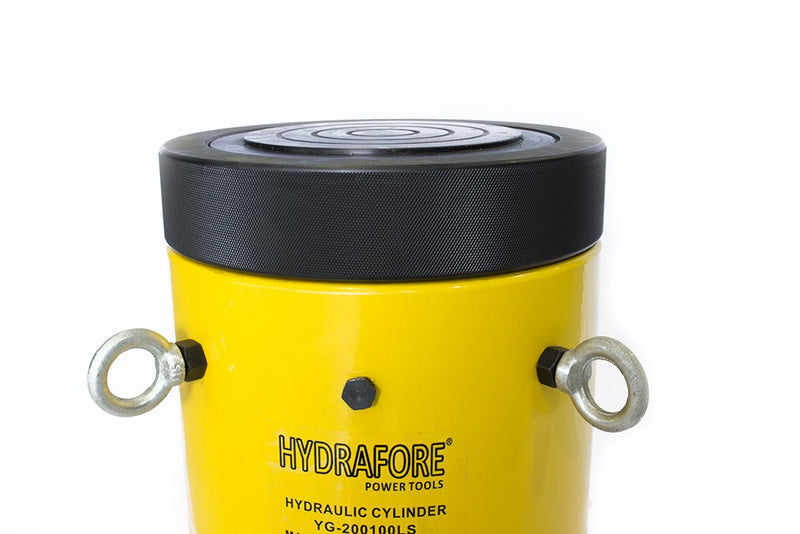

Single-acting hydraulic cylinder with safety nut (200 T, 150mm) (YG-200150LS)
Original price
0 Ft
-
Original price
0 Ft
Original price
0 Ft
448.437 Ft
448.437 Ft
-
448.437 Ft
Current price
448.437 Ft
Nettó ár:
353.100 Ft
Availability:
Low stock
| Technical parameters: | |
| Model: | YG-200150LS |
| Capacity: | 200 T |
| Stroke length: | 150 mm |
| Oil capacity: | 4408 cm3 |
| Retracted height: A | 343 mm |
| Extended height: B | 493 mm |
| Outside diameter: D | 238 mm |
| Inner diameter: E | 190 mm |
| Piston outer diameter: F | 190 mm |
| Piston thickness: | 50 mm |
| Recommended power unit: | B-630C |
| Weight: | 118.0 kg |
HYDRAFORE YG-200150LS
Single-acting lock nut hydraulic cylinder (200 T, 150 mm)
- Operating pressure: 700 bar
- Safety lock nut for mechanical load holding.
- 10-200 ton cylinders with spring return, 250-1000 ton models without springs.
- High-strength alloy steel for durability.
- Chrome-plated piston resists wear and corrosion.
- Baked enamel finish for increased corrosion resistance.

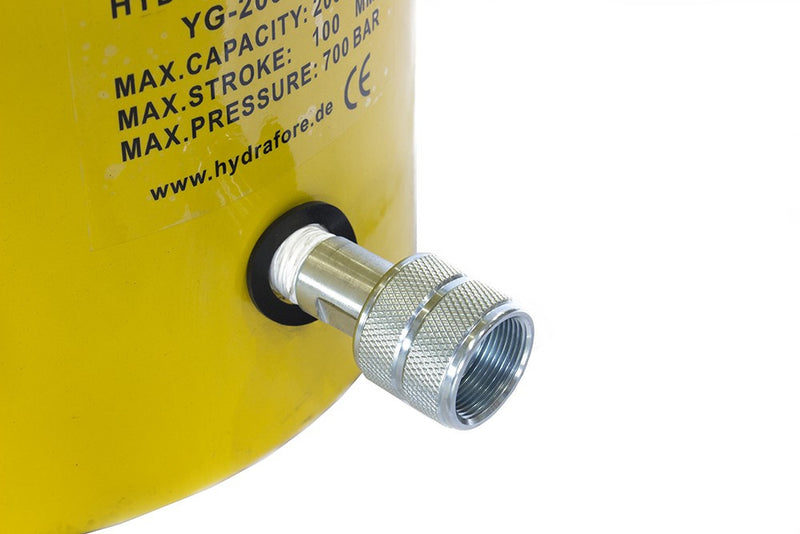

- All cylinders come with HH-II R2 3/8 female couplers and dust caps.
Recommended power unit: B-630C
*2-year EZ-Tools warranty on all our HYDRAFORE brand products!
