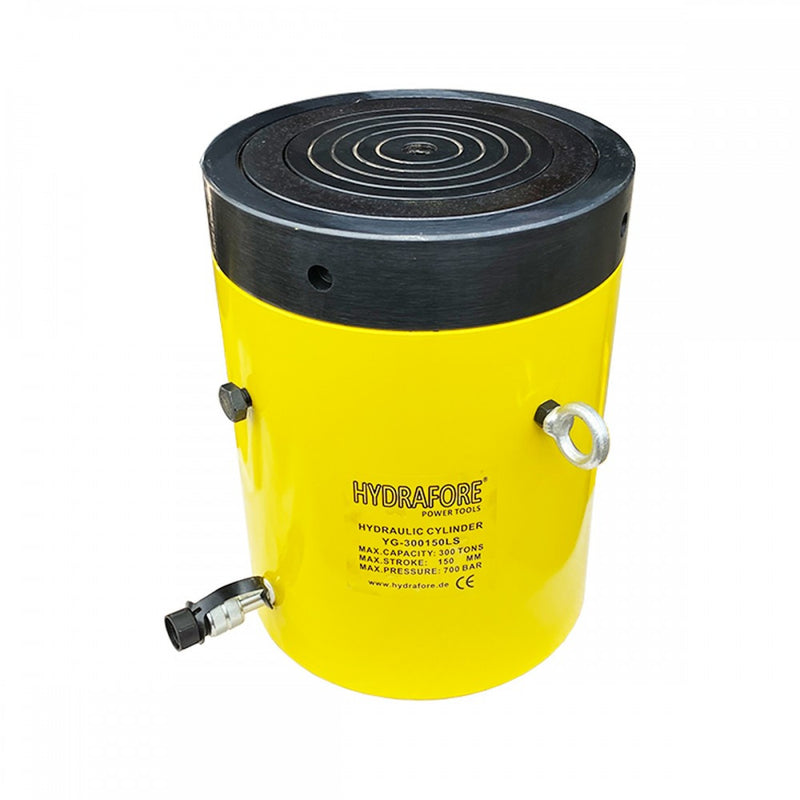

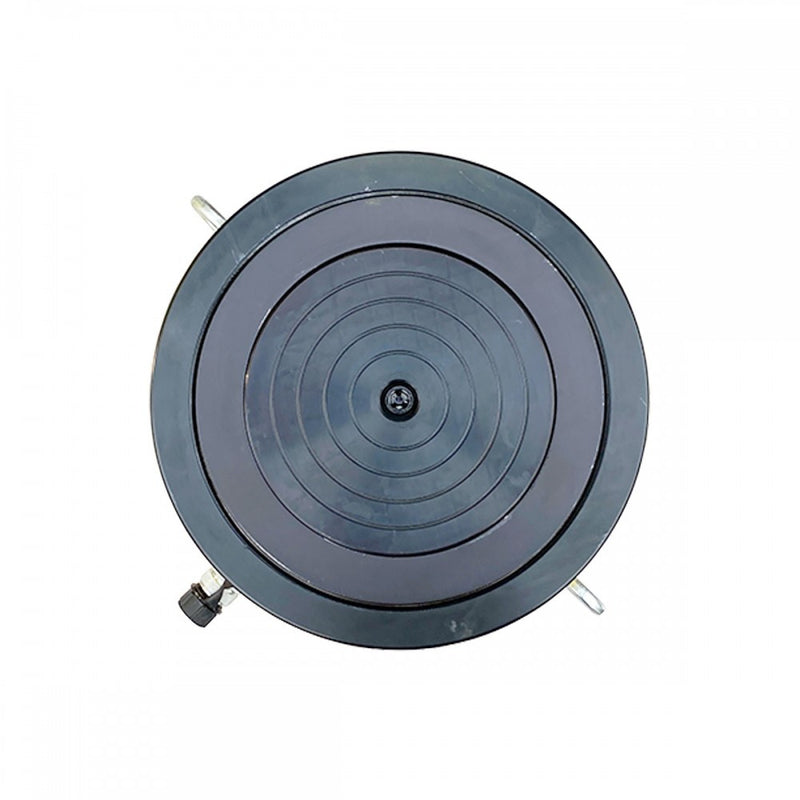

Single-acting hydraulic cylinder with safety nut (300 T, 150mm) (YG-300150LS)
Sold out
Original price
0 Ft
-
Original price
0 Ft
Original price
0 Ft
681.228 Ft
681.228 Ft
-
681.228 Ft
Current price
681.228 Ft
Nettó ár:
536.400 Ft
Availability:
Out of stock
| Technical parameters: | |
| Model: | YG-300150LS |
| Capacity: | 300 T |
| Stroke length: | 150 mm |
| Oil capacity: | 6786 cm3 |
| Retracted height: A | 396 mm |
| Extended height: B | 546 mm |
| Outer diameter: D | 285 mm |
| Inner diameter: E | 240 mm |
| Plunger outer diameter: F | 240 mm |
| Plunger thickness: | 60 mm |
| Recommended power unit: | B-630M |
| Weight: | 193.0 kg |
| Shipping dimensions: | 40x40x40 cm |
HYDRAFORE YG-300150LS
Single-acting lock nut hydraulic cylinder (300 T, 150 mm)
- Working pressure: 700 bar
- Safety lock nut for mechanical load holding.
- 10-200 ton cylinders with spring return, 250-1000 ton models are non-spring return.
- High strength alloy steel for durability.
- Chrome-plated plunger resists wear and corrosion.
- Baked enamel finish for increased corrosion resistance.

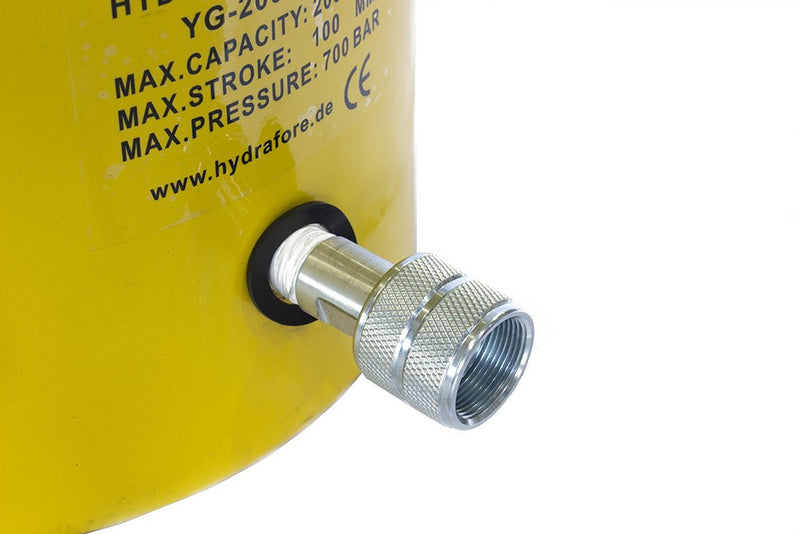

- All cylinders come with HH-II R2 3/8 plug half coupling and dust cap.
- Recommended power unit: B-630M
*2-year EZ-Tools warranty on all our HYDRAFORE brand products!
