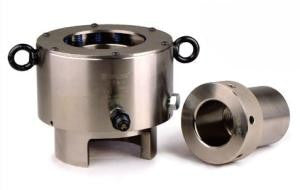

Hydraulic bolt tensioner (insert type, spring return) - WREN Hydraulic (HTS)

Type	Bolt Size (mm)	Max. Tension Force (kN)	Dimensions (mm)						Extension Length (mm)	Weight (kg)
Type	Bolt Size (mm)	Max. Tension Force (kN)	A	B	C	D	E	F	Extension Length (mm)	Weight (kg)
HTS0	M20	307	109	55	23	25	111	128	8	5
	M22			60	25	27	113	130	8
	M24			66	27	29	115	132	8
	M27			72	30	32	118	135	8
HTS1	M30	486	109	80	33	35	126	144	8	7
	M33			85	36	38	129	147	8
	M36			90	39	41	132	150	8
HTS2	M33	814	132	85	36	44	135	150	8	10
	M36			96	43	43	134	149	8
	M39			98	42	50	141	156	8
	M42			105	45	53	144	159	8
HTS3	M39	989	150	110	42	42	136	150	10	15
	M42			113	53	56	150	164	10
	M45			114	50	50	144	161	10
	M48			118	52	52	146	163	10
HTS4	M52	1413	174	132	55	56	154	174	10	20
HTS4	M56	1413	174	135	59	60	158	178	10	20
HTS5
