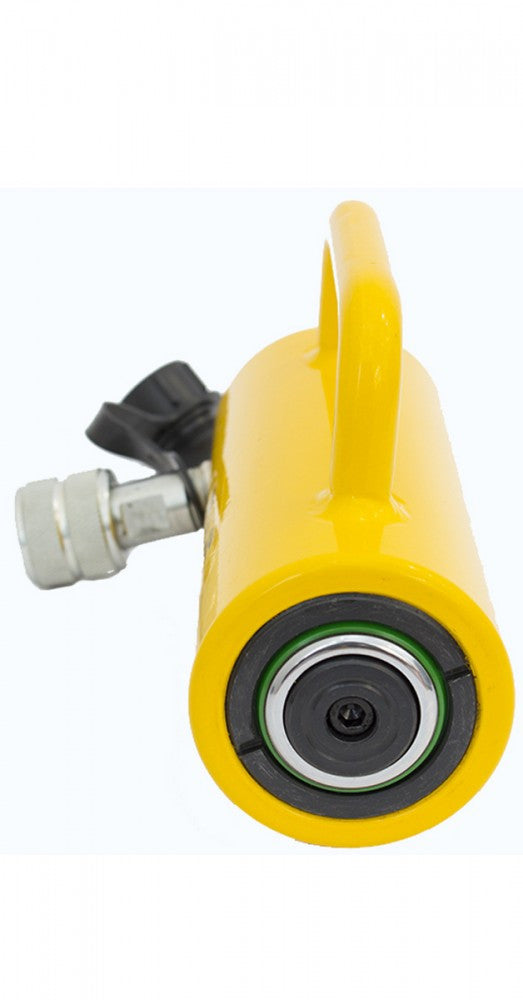

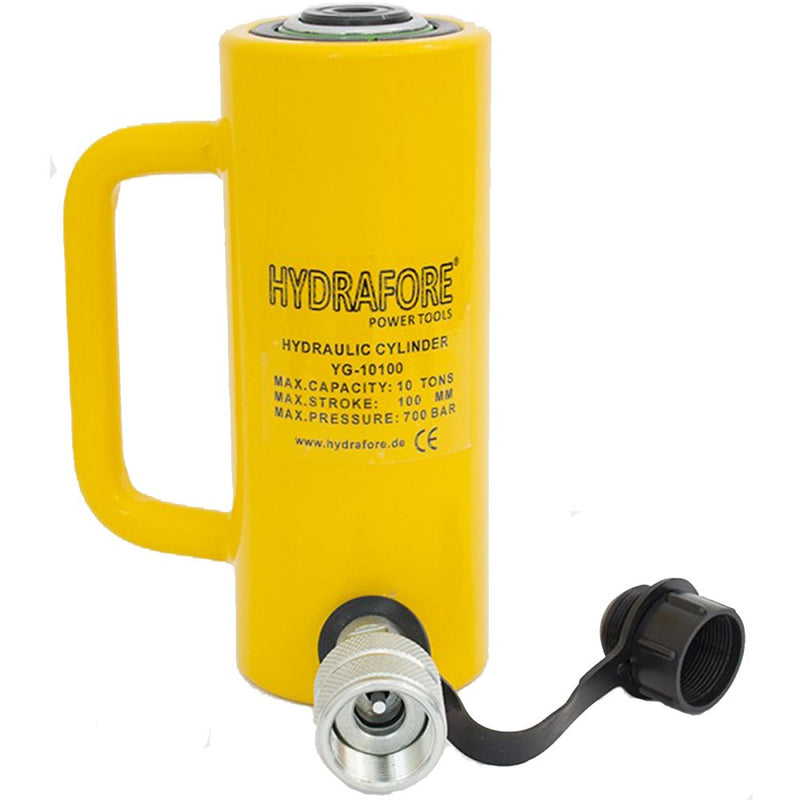

Single-acting Hydraulic Cylinder (10T, 100mm) (YG-10100)
Original price
0 Ft
-
Original price
0 Ft
Original price
0 Ft
36.576 Ft
36.576 Ft
-
36.576 Ft
Current price
36.576 Ft
Nettó ár:
28.800 Ft
Availability:
in stock, ready to be shipped
| Technical parameters: | |
| Model: | YG-10100 |
| Capacity: | 10 T |
| Stroke: | 100 mm |
| Oil capacity: | 169 cm3 |
| Collapsed height: A | 172 mm |
| Extended height: B | 272 mm |
| Outside diameter: D | 68 mm |
| Inner diameter: E | 45 mm |
| Piston outside diameter: F | 36 mm |
| Piston inner diameter: J | 27.5 mm |
| Recommended power supply: | B-700C |
| Weight: | 4.4 kg |
| Shipping size: | 19x12x12cm |
HYDRAFORE YG-10100
Single-acting cylinder
- Its capacity reaches 10 tons, with a stroke length of 100mm.
- Oil capacity 169cm3.
- Center bolt size: M10x12mm
- Operating pressure: 700 bar
- Can be used in any position.
- High-strength alloy steel for durability.
- Chrome-plated piston resists wear and corrosion.
- Dust cap on piston rod reduces contamination.
- Baked enamel finish for increased corrosion resistance.
- All cylinders are tested to 125% of capacity before leaving our factory.
- The bores of 10-100 ton cylinders are polished for a smoother surface.
-
10-200 ton cylinder models are spring return, and 250-1000 ton cylinder models are load return.

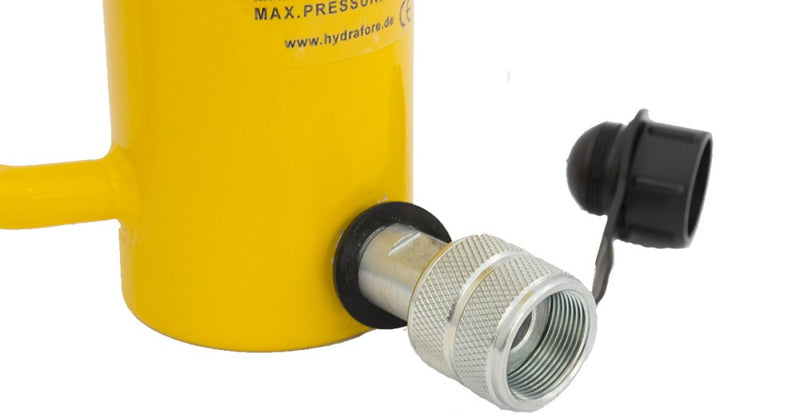

- All cylinders feature HH-II R2 3/8 plug half-couplers and dust caps.
- Recommended power unit: B-700C
*2-year EZ-Tools warranty on all HYDRAFORE branded products!
