Single-acting general hydraulic cylinder (30T, 100mm) (YG-30100)
Original price
0 Ft
-
Original price
0 Ft
Original price
0 Ft
57.404 Ft
57.404 Ft
-
57.404 Ft
Current price
57.404 Ft
Nettó ár:
45.200 Ft
Availability:
Low stock

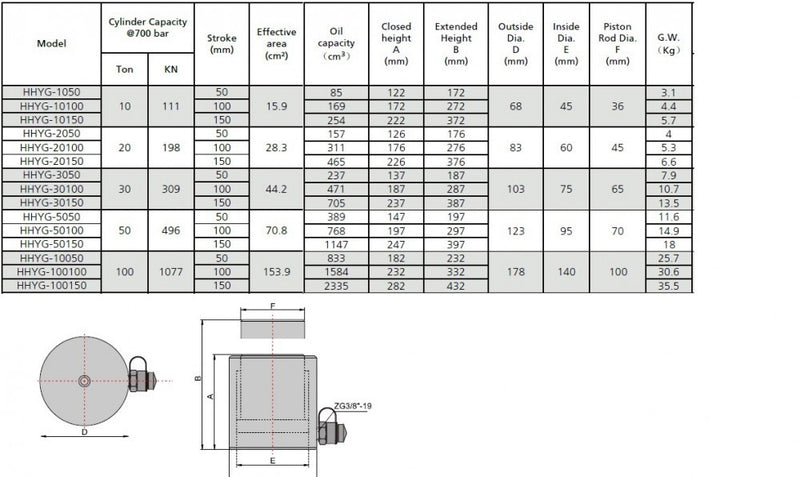

| Technical Parameters: | |
| Model: | YG-30100 |
| Capacity: | 30 T |
| Stroke: | 100 mm |
| Oil Capacity: | 471 cm3 |
|

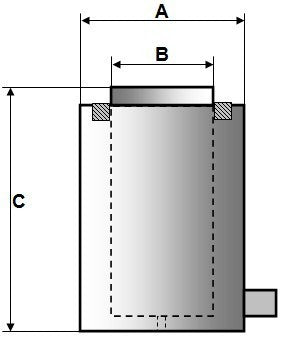

Retracted Height: A |
187 mm |
| Extended Height: B | 287 mm |
| Outer Diameter: D | 103 mm |
| Inner Diameter: E | 75 mm |
| Piston Outer Diameter: F | 65 mm |
| Piston Inner Diameter: J | 48.5 mm |
| Recommended Power Unit: | B-700 |
| Shipping Size: | 20x12x12 cm |
| Weight: | 11.0 kg |

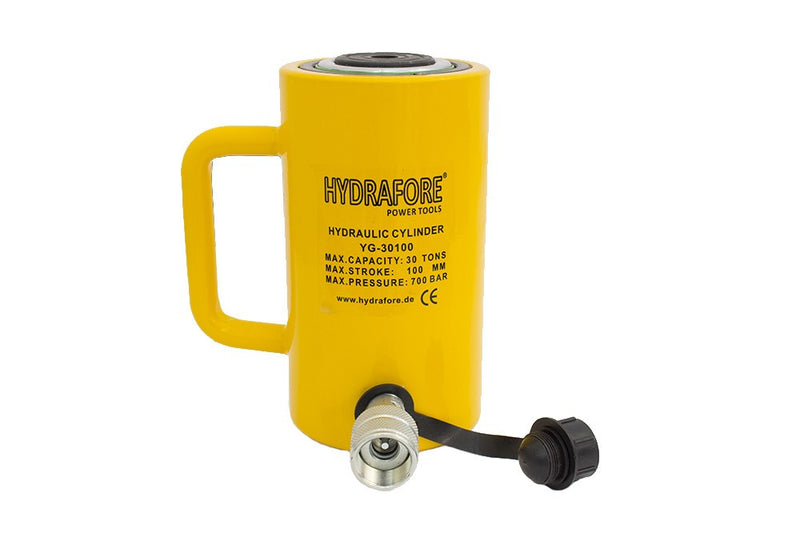

HYDRAFORE YG-30100
Hydraulic Cylinder, Single-Acting
- Max. capacity 30T.
- Stroke length 100mm.
- Central bolt size: M10x12mm
- Working pressure: 700 bar
- Can be used in any position.
- High-strength alloy steel for durability.
- Chrome-plated piston resists wear and corrosion.
- Dust cap on piston rod reduces contamination.
- Baked enamel finish for increased corrosion resistance.
- Each cylinder is tested to 125% capacity before leaving our factory.
- Bores of 10-100 ton cylinders are polished for a smoother surface.
- Cylinder models from 10-200 tons are spring return, and 250-1000 ton cylinder models are load return.

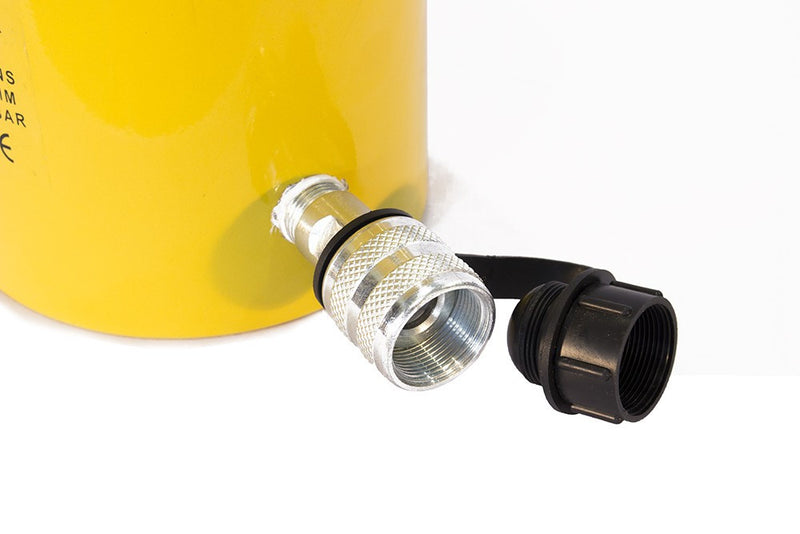

- Each cylinder comes with a HH-II R2 3/8 plug half coupling and dust cap.
Our Recommendation:
Matching power unit for faster operation.
*2-year EZ-Tools warranty on all our products under the HYDRAFORE brand!
