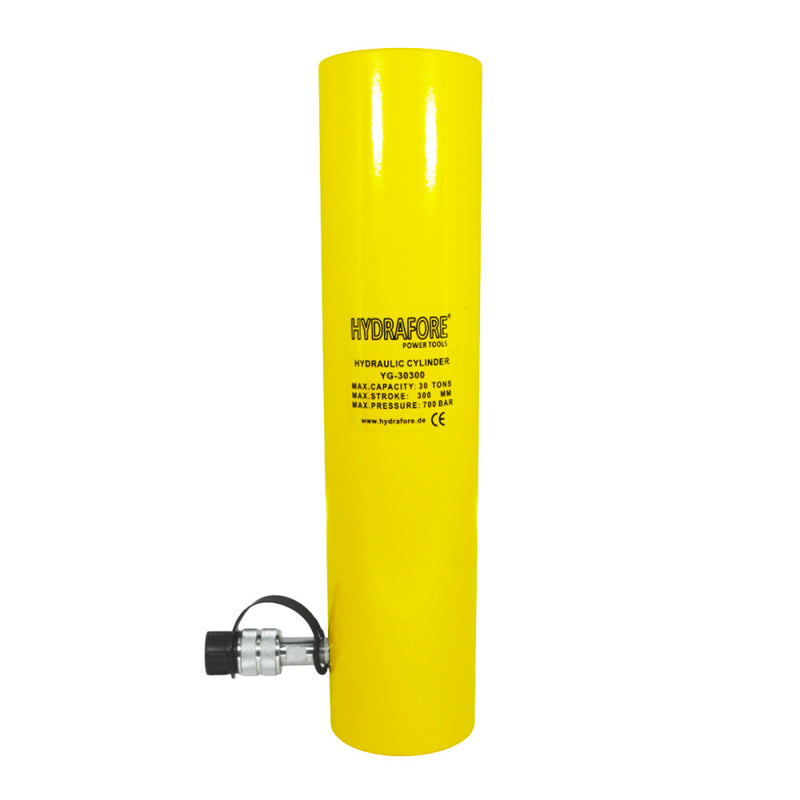

Single-acting general hydraulic cylinder (30T, 300mm) (YG-30300)
Sold out
Original price
0 Ft
-
Original price
0 Ft
Original price
0 Ft
155.321 Ft
155.321 Ft
-
155.321 Ft
Current price
155.321 Ft
Nettó ár:
122.300 Ft
Availability:
Out of stock
| Technical parameters: | |
| Model: | YG-30300 |
| Capacity: | 30 T |
| Stroke length: | 300 mm |
| Oil capacity: | 1326 cm3 |

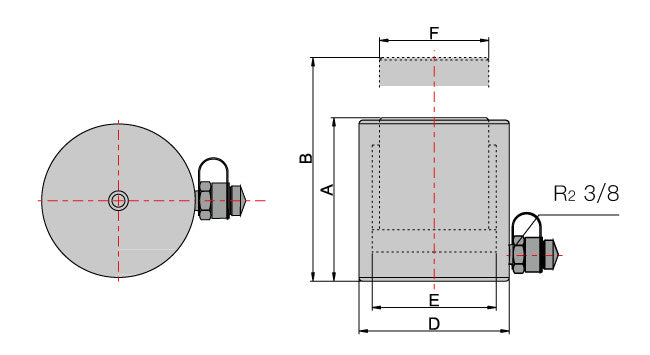

| Retracted height: A | 411 mm |
| Extended height: B | 711 mm |
| Outer diameter: D | 95 mm |
| Inner diameter: E | 75 mm |
| Piston outer diameter: F | 65 mm |
| Piston inner diameter: J | 48 mm |
| Recommended power unit: | B-700A |
| Weight: | 18.0 kg |
| Shipping size: | 43x18x12 cm |
HYDRAFORE YG-30300
Single-acting general purpose hydraulic cylinder (30T, 300mm)
- Operating pressure: 700bar
- Can be used in all positions.
- High strength alloy steel for durability.
- Chrome plated piston resists wear and corrosion.
- Dust wiper on piston rod reduces contamination.
- Baked enamel finish for increased corrosion resistance.
- All cylinders are tested to 125% capacity before leaving our factory.
- The bores of 10-100 ton cylinders are polished for a smoother surface.
- 10-200 ton cylinder models are spring return, 250-1000 ton cylinder models are load return.

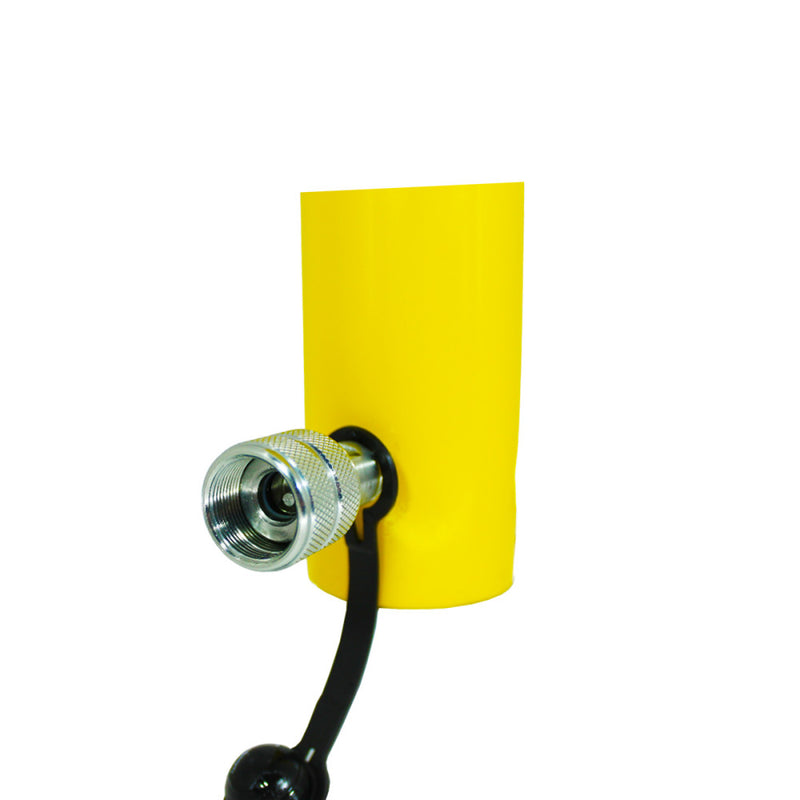

- All cylinders are supplied with HH-II R2 3/8 plug half couplers and dust caps.
*2-year EZ-Tools warranty on all HYDRAFORE branded products!
