Single-acting general hydraulic cylinder (5T, 100mm) (YG-5100)
Original price
0 Ft
-
Original price
0 Ft
Original price
0 Ft
29.718 Ft
29.718 Ft
-
29.718 Ft
Current price
29.718 Ft
Nettó ár:
23.400 Ft
Availability:
Low stock
| Technical parameters: | |
| Model: | YG-5100 |
| Capacity: | 5 T |
| Stroke: | 100 mm |
| Oil capacity: | 97 cm3 |

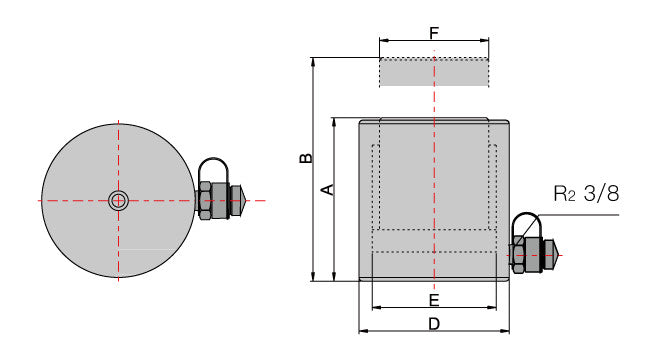

| Retracted height: A | 184 mm |
| Extended height: B | 284 mm |
| Outer diameter: D | 45 mm |
| Inner diameter: E | 35 mm |
| Piston outer diameter: F | 25 mm |
| Piston inner diameter: J | 25 mm |
| Recommended power unit: | B-700 |
| Weight: | 2.1 kg |
| Shipping size: | 22x15x6 cm |
HYDRAFORE YG-5100
Single-acting general purpose hydraulic cylinder (5T, 100mm)
- Operating pressure: 700 bar
- Can be used in any position.
- High-strength alloy steel for durability.
- Chrome-plated piston resists wear and corrosion.
- Dust wiper on piston rod reduces contamination.
- Baked enamel finish for increased corrosion resistance.
- All cylinders are tested to 125% capacity before leaving our factory.
- The bores of 10-100 ton cylinders are polished to a smoother finish.
- 10-200 ton cylinder models are spring return, and 250-1000 ton cylinder models are load return.
- All cylinders come with a HH-II R2 3/8 NPT male coupler and dust cap.
*2-year EZ-Tools warranty on all our HYDRAFORE brand products!
