Single-acting general hydraulic cylinder (150T, 50mm) (YG-15050)
Original price
0 Ft
-
Original price
0 Ft
Original price
0 Ft
201.549 Ft
201.549 Ft
-
201.549 Ft
Current price
201.549 Ft
Nettó ár:
158.700 Ft
Availability:
Low stock
| Technical parameters: | |
| Model: | YG-15050 |
| Power: | 150 T |
| Stroke length: | 50 mm |
| Oil capacity: | 1133 cm3 |
| Retracted height: A | 183 mm |
| Total height: B | 232 mm |
| Outer diameter: D | 205 mm |
| Inner diameter: E | 165 mm |
| Piston outer diameter: F | 115 mm |
| Piston inner diameter: J | 89 mm |
| Screw: | M10x12 mm |
| Recommended power supply: | B-700A |
| Weight: | 46.0 kg |

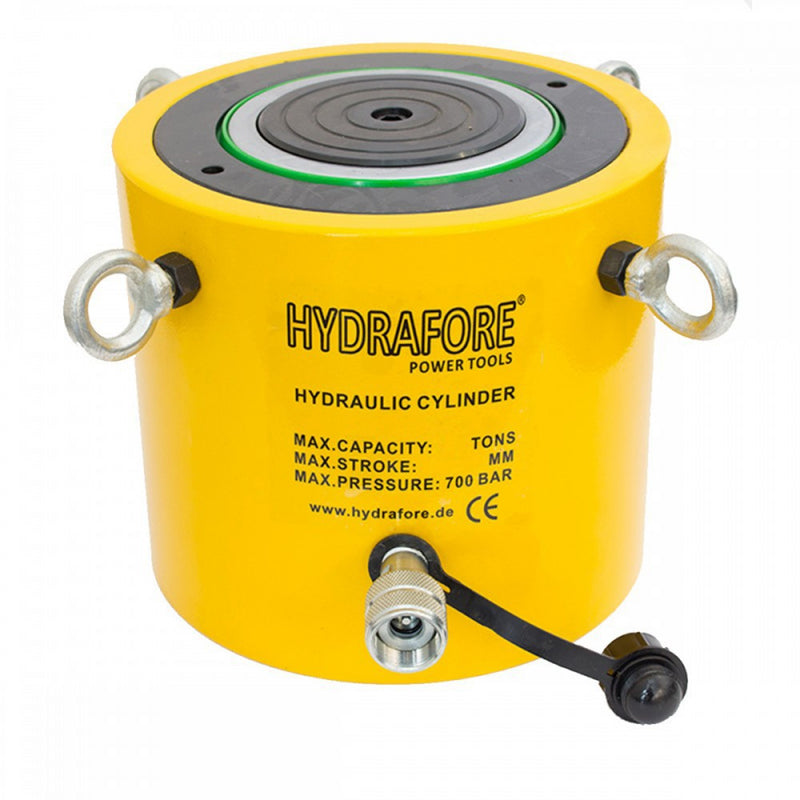

*The image is an illustration!
HYDRAFORE YG-15050
Single-acting general purpose hydraulic cylinder (150T, 50mm)
- Center screw size: M10x12mm
- Center screw size: M10x12mm
- Operating pressure: 700bar
- Can be used in any position.
- High-strength alloy steel for durability.
- Chromed piston resists wear and corrosion.
- Dust seal on the piston rod reduces contamination.
- Baked enamel finish for increased corrosion resistance.
- All cylinders are tested to 125% capacity before leaving our factory.
- Bores of 10-100 ton cylinders are polished for a smoother surface.
- 10-200 ton cylinder models are spring return, 250-1000 ton cylinder models are load return.
- All cylinders come with HH-II R2 3/8 plug half coupling and dust cap.
*2-year EZ-Tools warranty on all our HYDRAFORE brand products!
