Single-acting hydraulic cylinder (100T, 50mm) (YG-10050)
Original price
0 Ft
-
Original price
0 Ft
Original price
0 Ft
125.603 Ft
125.603 Ft
-
125.603 Ft
Current price
125.603 Ft
Nettó ár:
98.900 Ft
Availability:
Low stock

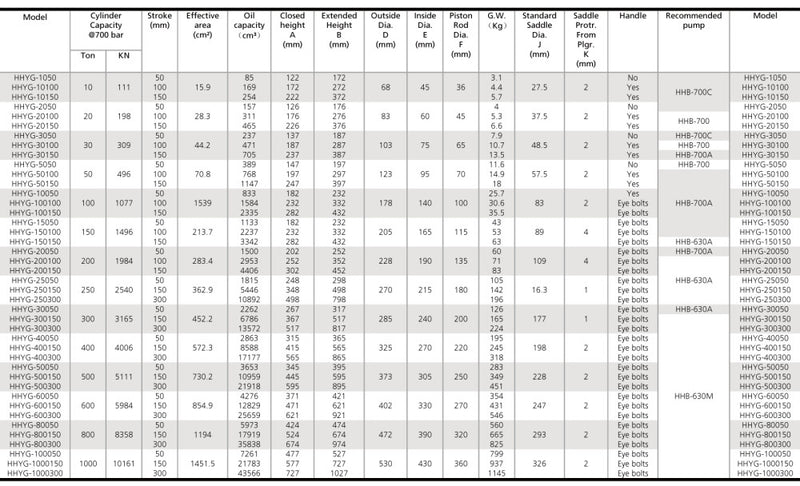

| Technical parameters: | |
| Model: | YG-10050 |
| Capacity: | 100 T |
| Stroke: | 50 mm |
| Oil capacity: | 833 cm3 |

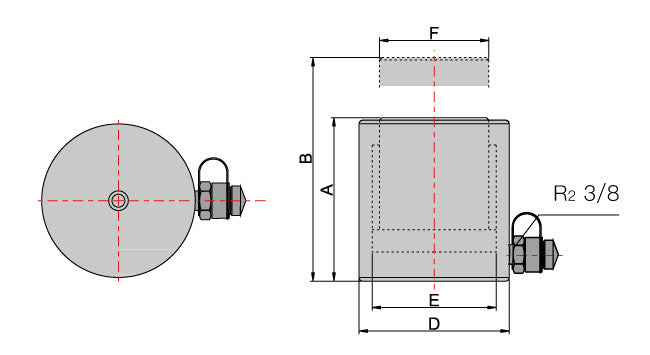

| Collapsed height: A | 182 mm |
| Extended height: B | 232 mm |
| Outer diameter: D | 178 mm |
| Inner diameter: E | 140 mm |
| Piston rod outer diameter: F | 100 mm |
| Piston rod inner diameter: J | 83 mm |
| Thread: | M10x12 mm |
| Recommended power supply: | B-700A |
| Weight: | 33.0 kg |
| Shipping size: | 20x20x20 cm |

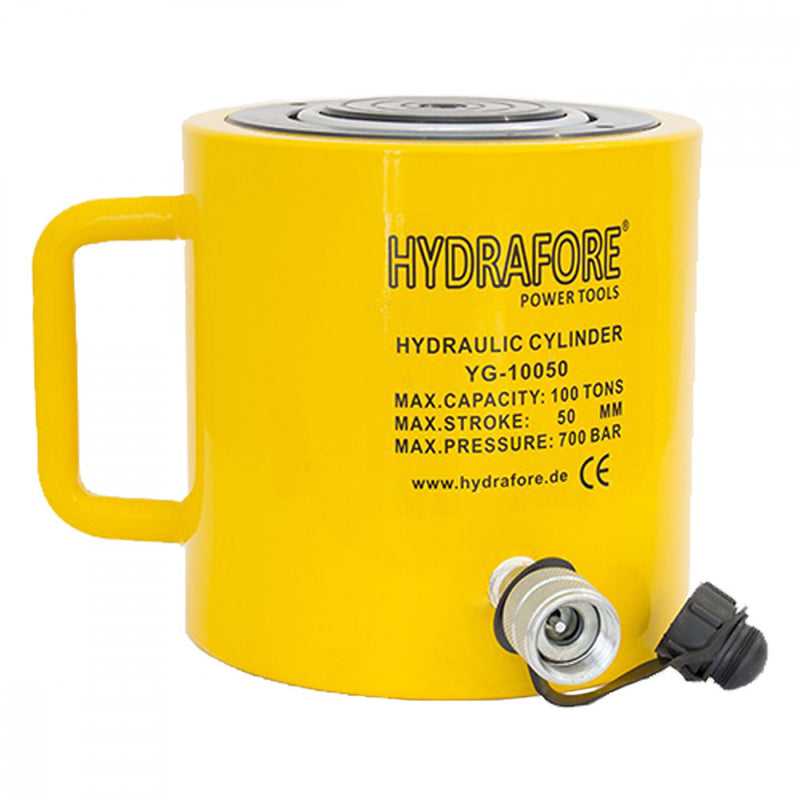

HYDRAFORE YG-10050
Single-acting general purpose hydraulic cylinder (100T, 50mm)
- Center hole thread: M10x12mm
- Working pressure: 700bar
- Can be used in all positions.
- High strength alloy steel for durability.
- Chrome plated piston rod resists wear and corrosion.
- Wiper seal on piston rod reduces contamination.
- Baked enamel finish for increased corrosion resistance.
- All cylinders are tested to 125% of capacity before leaving our factory.
- Bore of 10-100 ton cylinders are polished to make the surface smoother.
- 10-200 ton cylinder models are spring return, 250-1000 ton cylinder models are load return.

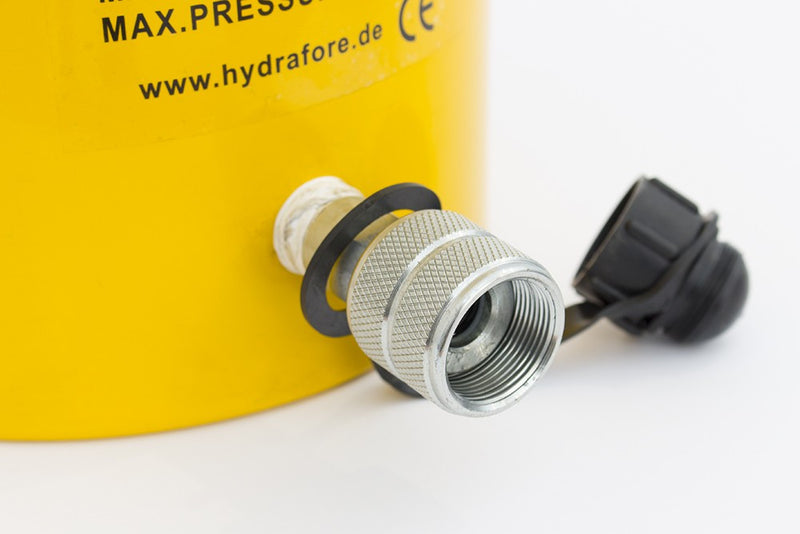

- All cylinders come with HH-II R2 3/8 female couplers and dust caps.
*2 years EZ-Tools warranty on all our HYDRAFORE brand products!
