Single-acting general hydraulic cylinder (200T, 150mm) (YG-200150)
Sold out
Original price
0 Ft
-
Original price
0 Ft
Original price
0 Ft
342.773 Ft
342.773 Ft
-
342.773 Ft
Current price
342.773 Ft
Nettó ár:
269.900 Ft
Availability:
Out of stock

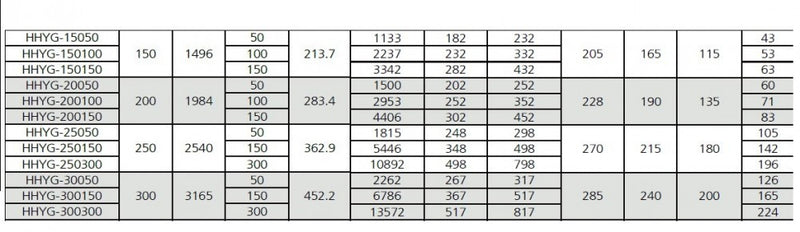

| Technical parameters: | |
| Model: | YG-200150 |
| Capacity: | 200 mm |
| Stroke length: | 150 mm |
| Oil capacity: | 4406 cm3 |
| Retracted height: A | 302 mm |
| Extended height: B | 452 mm |
| Outer diameter: D | 228 mm |
| Inner diameter: E | 190 mm |
| Piston outer diameter: F | 135 mm |
| Piston inner diameter: J | 109 mm |
| Recommended power unit: | B-630C |
| Weight: | 83 kg |

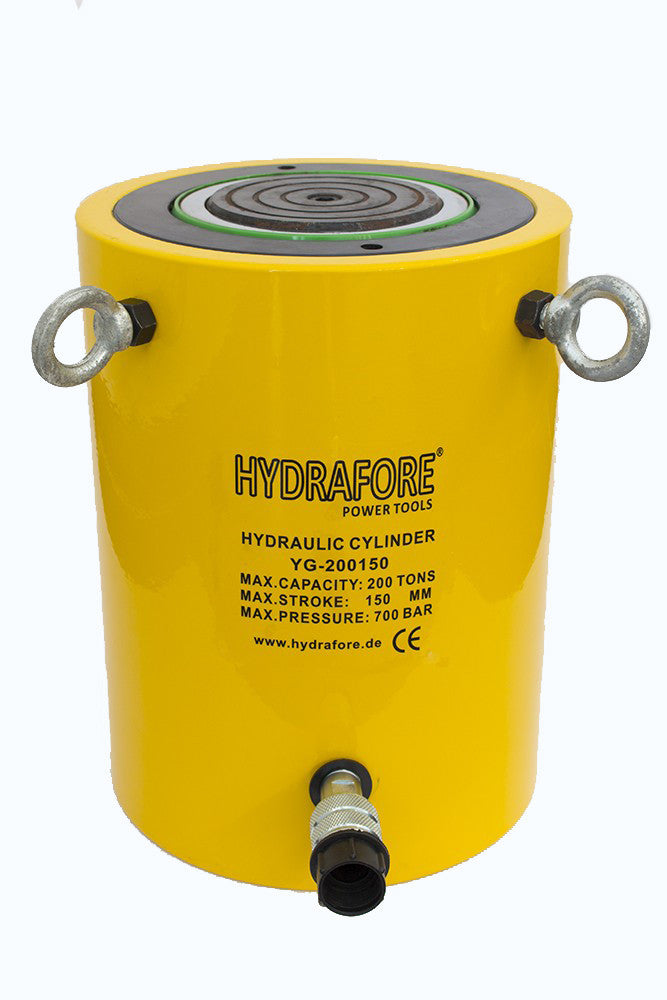

HYDRAFORE YG-200150
Single acting general purpose hydraulic cylinder (200T, 150mm)
- Central bolt size: M10x12mm
- Operating pressure: 700bar
- Can be used in any position.
- High strength alloy steel for durability.
- Chrome-plated piston resists wear and corrosion.
- Dust wiper on piston rod reduces contamination.
- Baked enamel finish for increased corrosion resistance.
- All cylinders are tested to 125% capacity before leaving our factory.
- Bores of 10-100 ton cylinders are polished for a smoother surface.
- 10-200 ton cylinder models are spring return, 250-1000 ton cylinder models are load return.

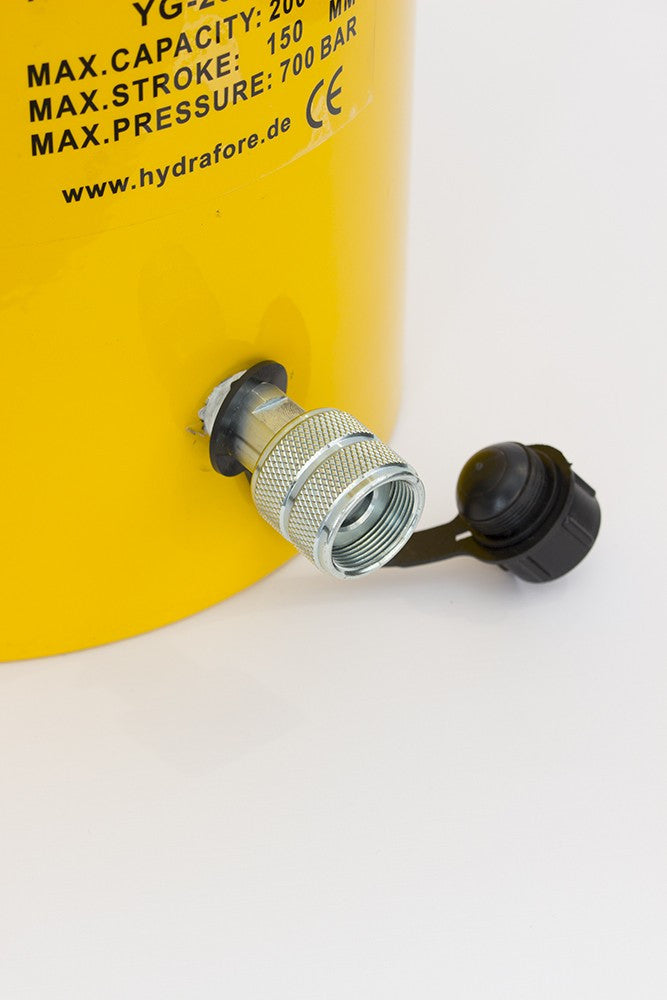

- All cylinders feature HH-II R2 3/8 female couplers and dust caps.
*2-year EZ-Tools warranty on all HYDRAFORE branded products!
