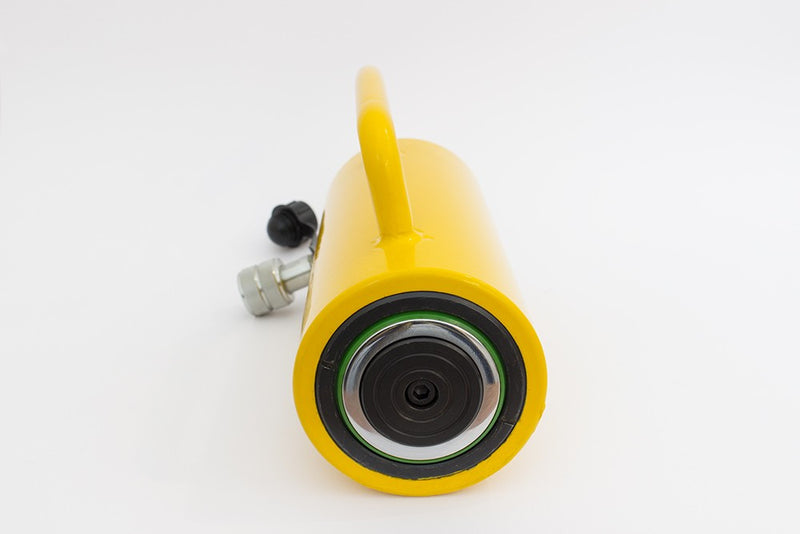

Single-acting general hydraulic cylinder (30T, 150mm) (YG-30150)
Original price
0 Ft
-
Original price
0 Ft
Original price
0 Ft
78.232 Ft
78.232 Ft
-
78.232 Ft
Current price
78.232 Ft
Nettó ár:
61.600 Ft
Availability:
Low stock

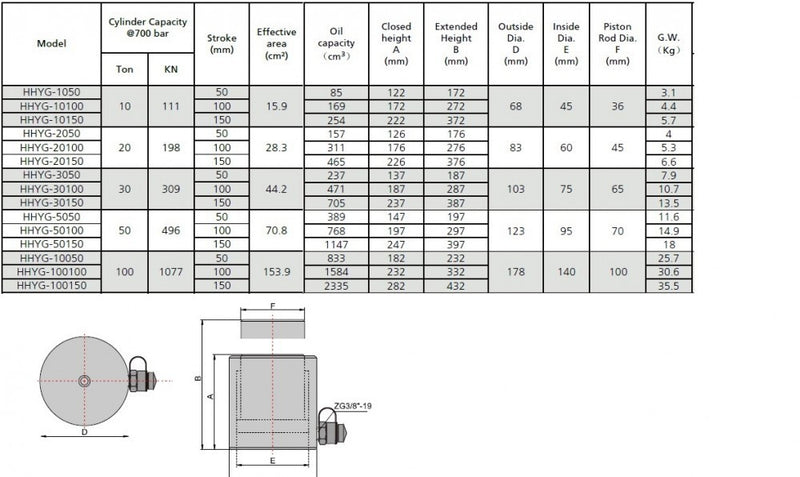

| Technical parameters: | |
| Model: | YG-30150 |
| Capacity: | 30 T |
| Stroke length: | 150 mm |
| Oil capacity: | 705 cm3 |

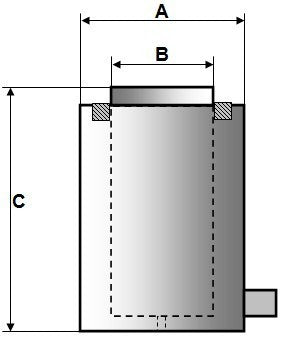

| Retracted height: A | 237 mm |
| Extended height: B | 387 mm |
| Outside diameter: D | 103 mm |
| Inner diameter: E | 75 mm |
| Piston outside diameter: F | 65 mm |
| Piston inner diameter: J | 48.5 mm |
| Recommended power unit: | B-700A |
| Weight: | 14.5 kg |
| Shipping size: | 25x15x15 cm |

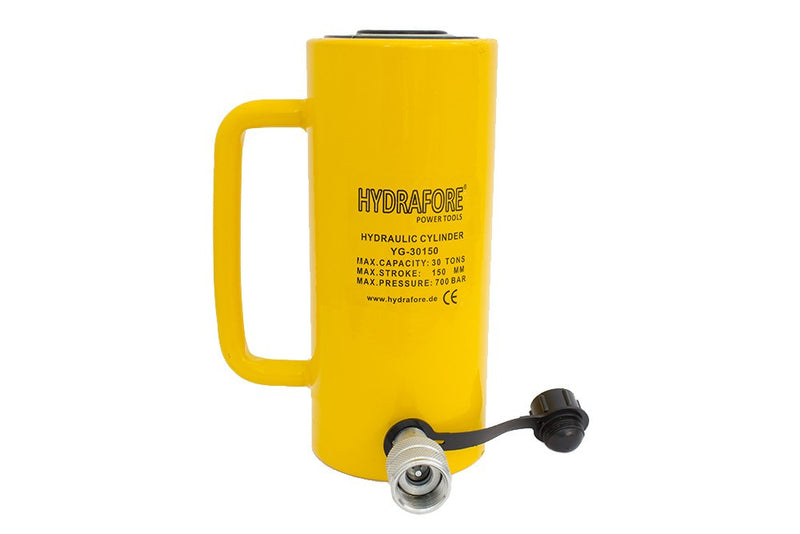

HYDRAFORE YG-30150
Hydraulic cylinder, single acting
- Maximum capacity reaches 30 Tons.
- Stroke length is 150mm!
- Oil capacity 705cm3
- Central bolt size: M10x12mm
- Operating pressure: 700bar
- Can be used in any position.
- High-strength alloy steel for durability.
- Chrome-plated piston resists wear and corrosion.
- Dust shield on the piston rod reduces contamination.
- Baked enamel finish for increased corrosion resistance.
- All cylinders are tested to 125% capacity before leaving our factory.
- Bores of 10-100 ton cylinders are polished for a smoother surface.
- 10-200 ton cylinder models are spring return, 250-1000 ton cylinder models are load return.

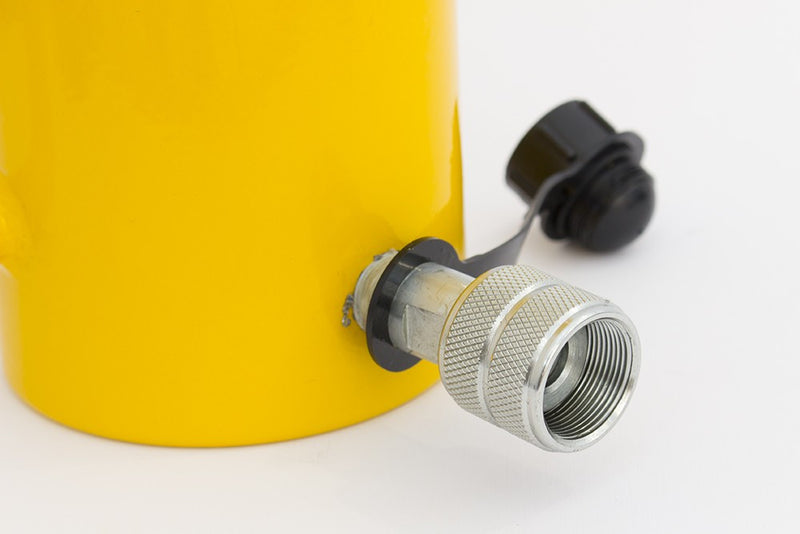

- All cylinders come with HH-II R2 3/8 plug half couplings and dust caps.
Our offer:
*2 years EZ-Tools warranty on all our HYDRAFORE brand products!
