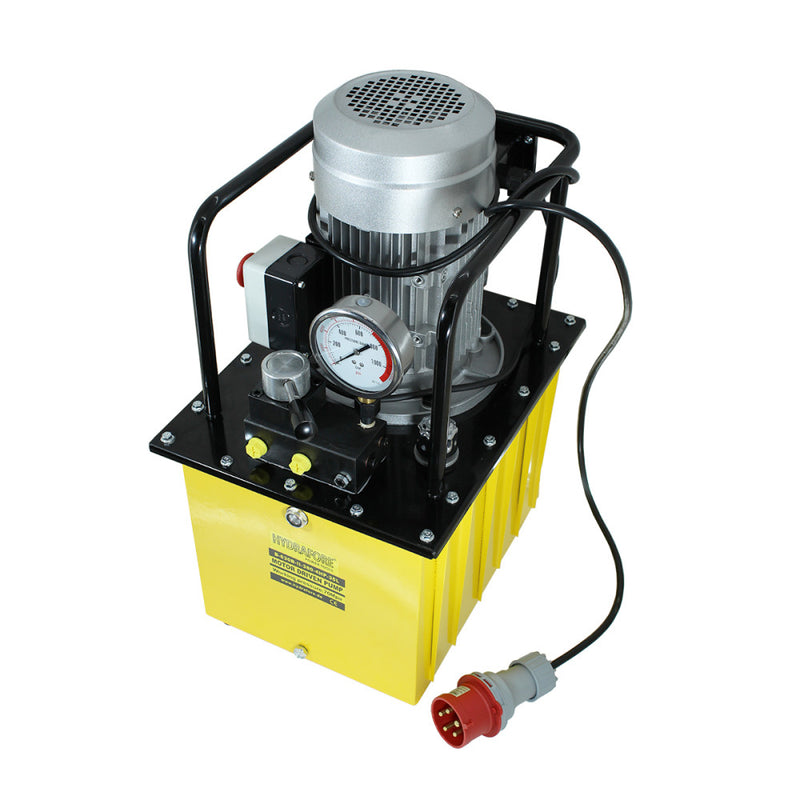

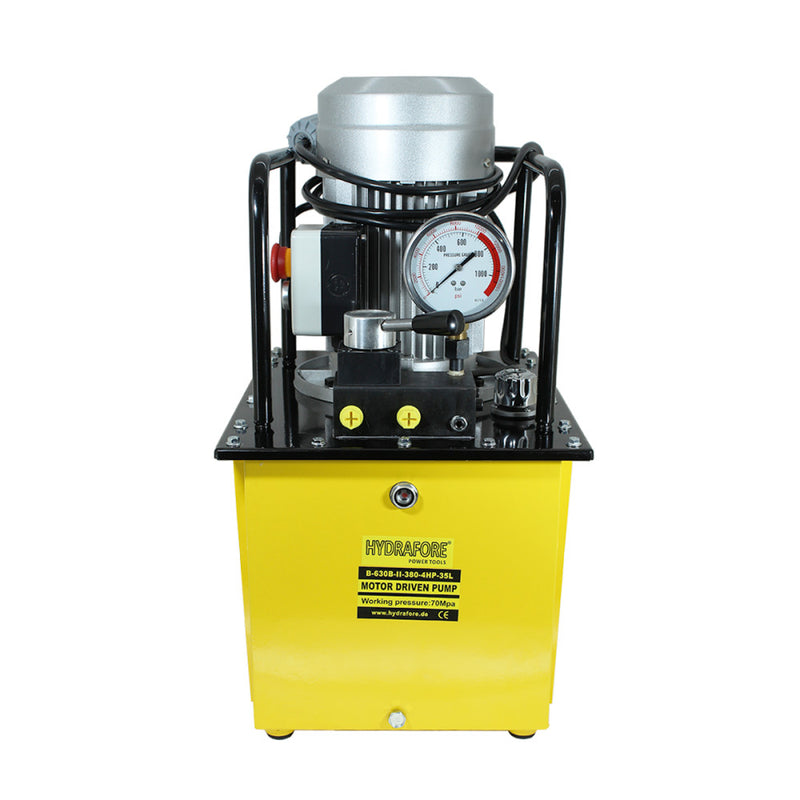

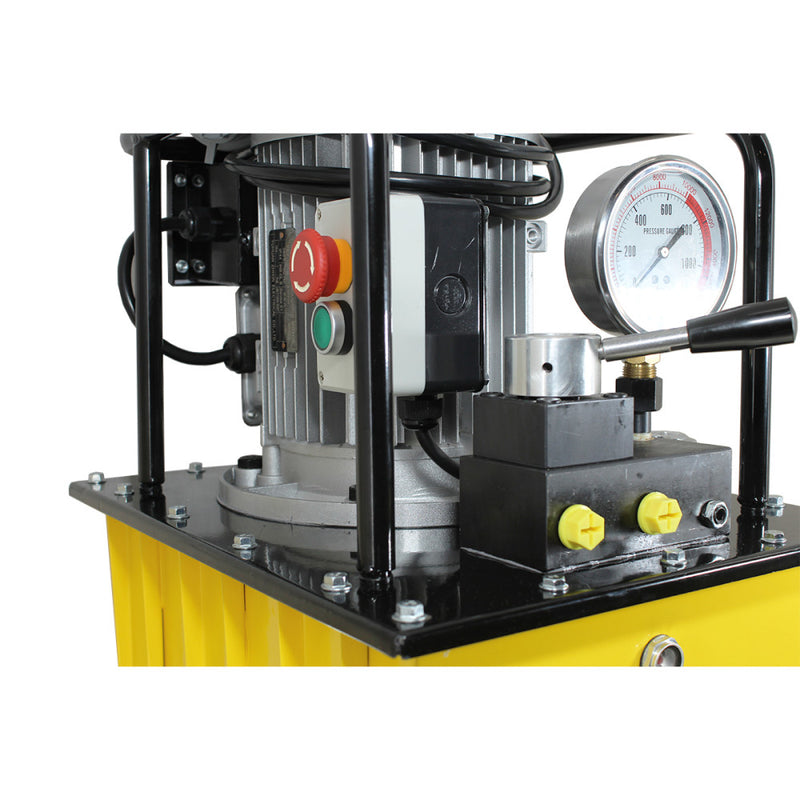

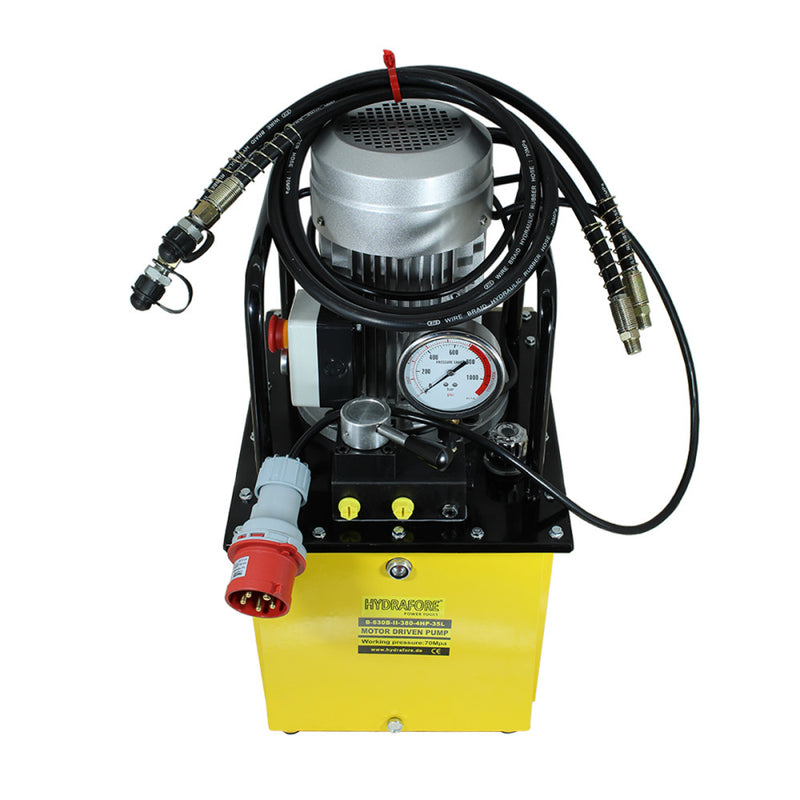

Dual-acting electric-driven power unit (manual valve 700bar-3kW/380V-35L) (B-630B-II-380-4HP-35L)
Sold out
Original price
0 Ft
-
Original price
0 Ft
Original price
0 Ft
595.376 Ft
595.376 Ft
-
595.376 Ft
Current price
595.376 Ft
Nettó ár:
468.800 Ft
Availability:
Out of stock
| Technical parameters: | |
| Model: | B-630B-II-380-4HP-35L |
| Operation: |
Double-acting, with manual valve |
| Oil delivery rate at low pressure: |
10 L/min |
| Oil delivery rate at high pressure: |
3 L/min |
| Max. pressure: | 700 Bar / 10.000 psi |
| Oil capacity: | 35 000cm3 |
| Motor: 3PH | 3 kW, 380V |
| Weight: | 65.8 kg |
| Shipping dimensions: | 50x38x70 cm |
Our electric power units are delivered without oil!
(HM-32/HM-46 viscosity required)
HYDRAFORE B-630B-II-380V-4HP-35L
Electrically driven power unit; Hydraulic pump (380V/3PH/3KW), 35L
- Double acting, with manual valve.
- Motor power 3kW.
- Oil capacity 35 000cm3, maximum pressure reaches 700 Bar.
- 3PH = 3 phase, i.e. 380V
- Power 3kW ∼ 4 HP (Horsepower)
*2-year EZ-Tools warranty for all our HYDRAFORE brand products!
