Dual-action electric power unit (solenoid valve 700Bar-3kW/380V-35L) (B-630B-III-380-4HP-35L)
Sold out
Original price
0 Ft
-
Original price
0 Ft
Original price
0 Ft
681.101 Ft
681.101 Ft
-
681.101 Ft
Current price
681.101 Ft
Nettó ár:
536.300 Ft
Availability:
Out of stock
| Technical Parameters: | |
| Model: | B-630B-III-380-4HP-35L |
| Operation: |
Dual-acting, solenoid valve, foot pedal |
| Oil flow rate at low pressure: | 10 L/min |
| Oil flow rate at high pressure: | 3 L/min |
| Max. pressure: | 700 bar / 10.000 psi |
| Oil capacity: | 35 000cm3 |
| Motor: 3PH | 3.0 kW, 380V |
| Weight: | 65.0 kg |

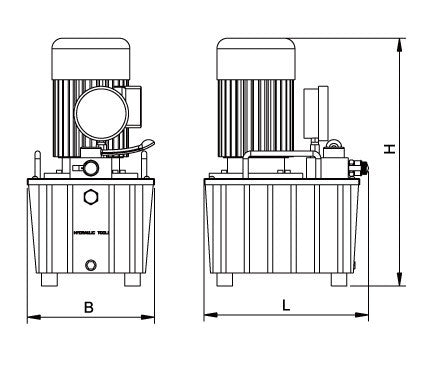

| Shipping dimensions: | 50x38x70 cm |
Our electric power units are delivered without oil!
(HM-32/HM-46 viscosity required)
*Image is an illustration!

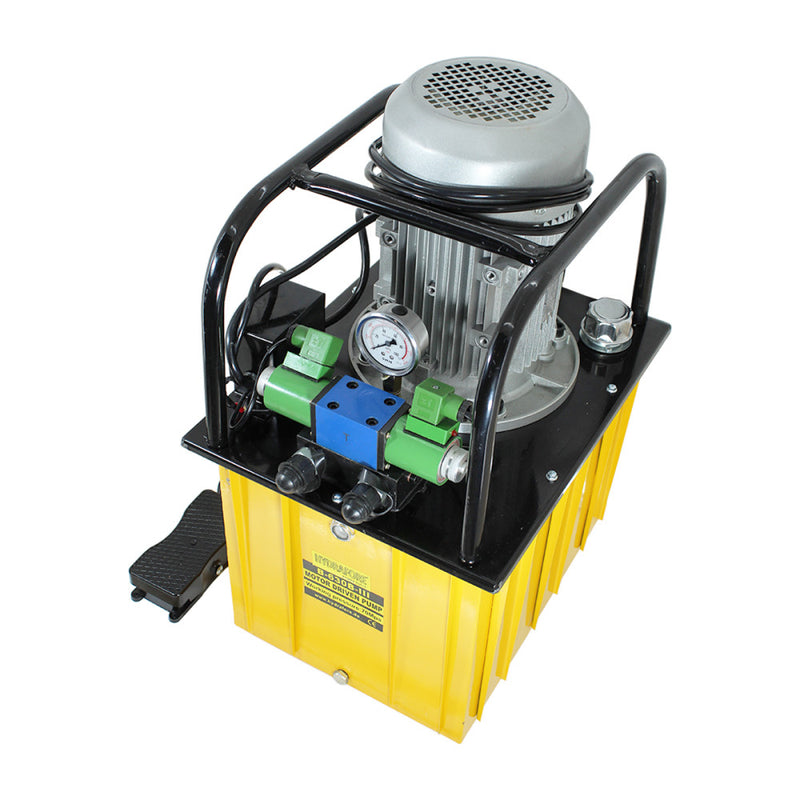

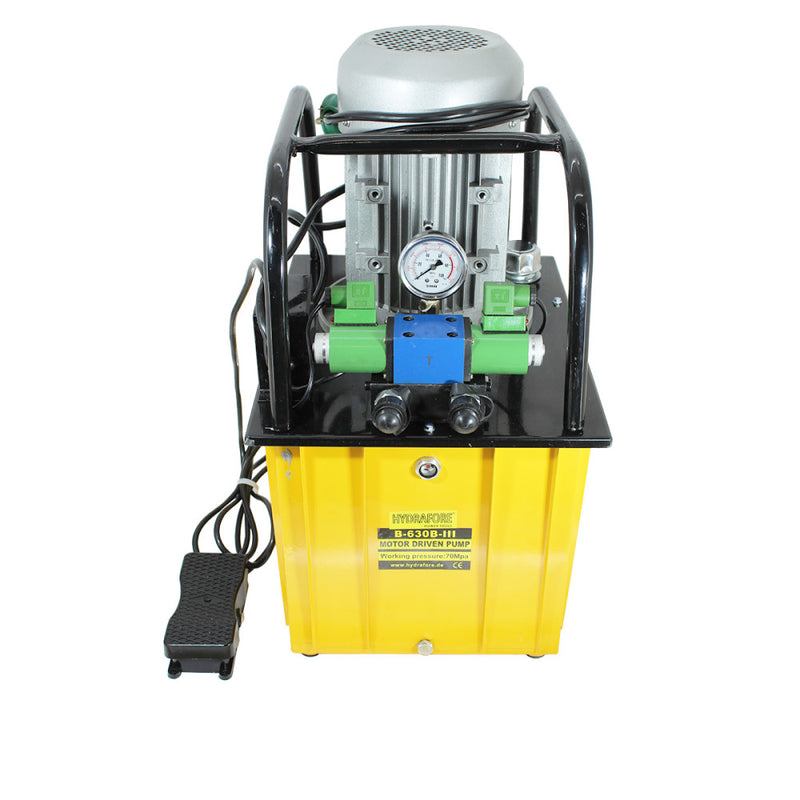

HYDRAFORE B-630B-III-380-4HP-35L
Electrically powered power unit; Hydraulic pump (380V/3PH/3kW), 35L
- Dual-acting.
- With solenoid valve foot pedal.
- Motor power 3.0kW.
- Oil capacity 35,000cm3, maximum pressure reaches 700Bar.
- 3PH = 3-phase, i.e., 380V
- Power 3kW ~ 4 HP (Horsepower)
*2-year EZ-Tools warranty on all our HYDRAFORE brand products!
