PROFI-LINE PLV 840/10/270 D Compressor (ELMAG 11051)
Sold out
Original price
0 Ft
-
Original price
0 Ft
Original price
0 Ft
1.454.150 Ft
1.454.150 Ft
-
1.454.150 Ft
Current price
1.454.150 Ft
Nettó ár:
1.145.000 Ft
Availability:
Out of stock
| Technical parameters: | |
| Model: | PLV 840/10/270 D (11051) |
| Actual delivery rate: | 595 liters/min |
| Suction capacity: | 850 liters/min |
| Maximum operating pressure: |
10 bar |
| Oil lubrication: | Yes |
| Tank capacity: | 270 liters |
| Rated power: | 5.5 kW / 7.5 HP |
| Voltage / frequency: | 400 V / 50 Hz |
| Sound pressure level (4 m): | 76 dB |
| Compressor speed: | 1150 rpm |
| Air connection: | 3/4" |
| Length: | 75 cm |
| Width: | 60 cm |
| Height: | 195 cm |
| Weight: | 185.0 kg |
ELMAG 11051

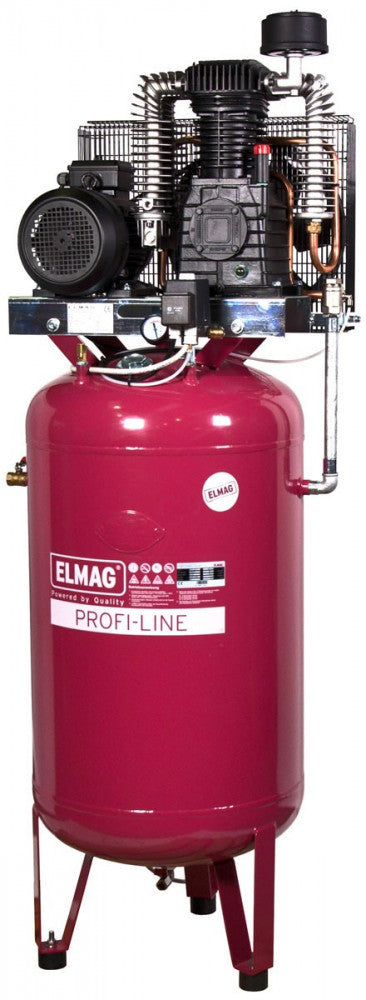

PROFI-LINE PLV 840/10/270 D compressor
- High-performance compressors for professional use
- Robust industrial design with high efficiency
- Total speed max. 1360 rpm: Long service life, low noise level

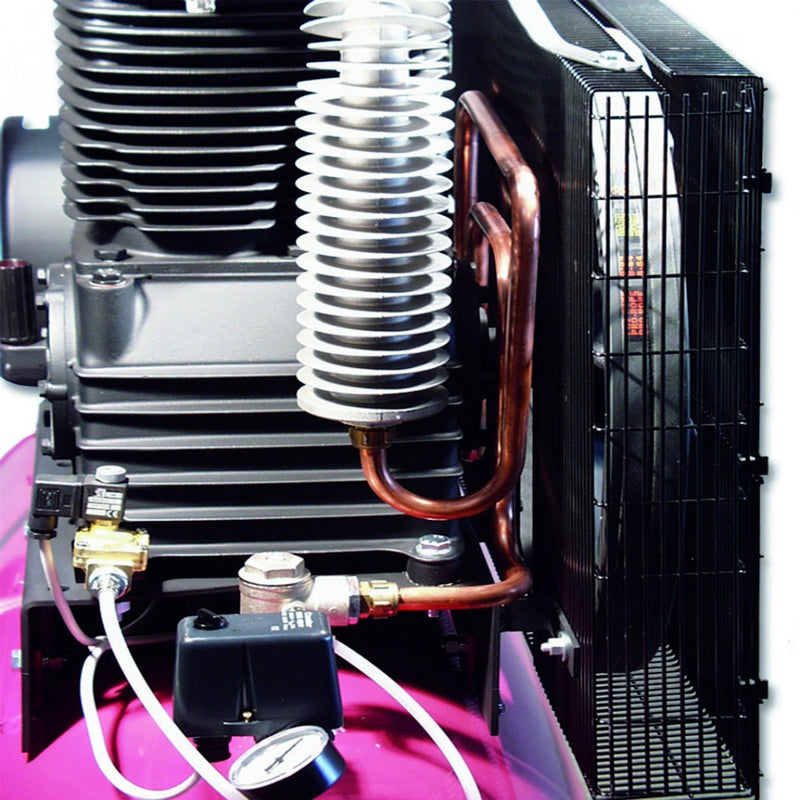

- 2-stage, 2- or 4-cylinder units with cast cylinder and large intermediate and aftercoolers made of aluminum die-cast
- Unique air cooling system - less condensation
- Extremely low air intake temperature (max. 50 - 60 °C) through the copper cooling pipe running behind the cooling wheel
- Models with tank capacities of 50, 100 and 200 liters are movable on solid rubber tires with swivel castors equipped with brakes and a filter pressure regulator
- Models from 270 liter boiler are equipped with fixed vibration dampers
(without filter pressure regulator) - "PL(H)V" models in space-saving vertical design
-

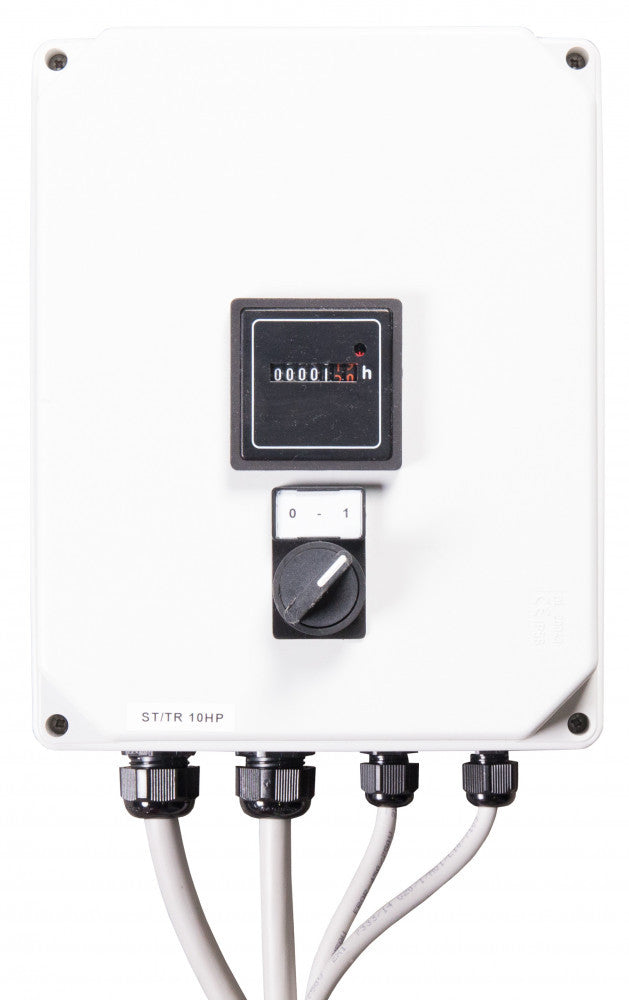

Hour meter and safety vent connections
as standard
Warranty: 2 years
Compressor accessories:
› Operator's toolkit
› Operation manual (Hungarian)
CE certificate
