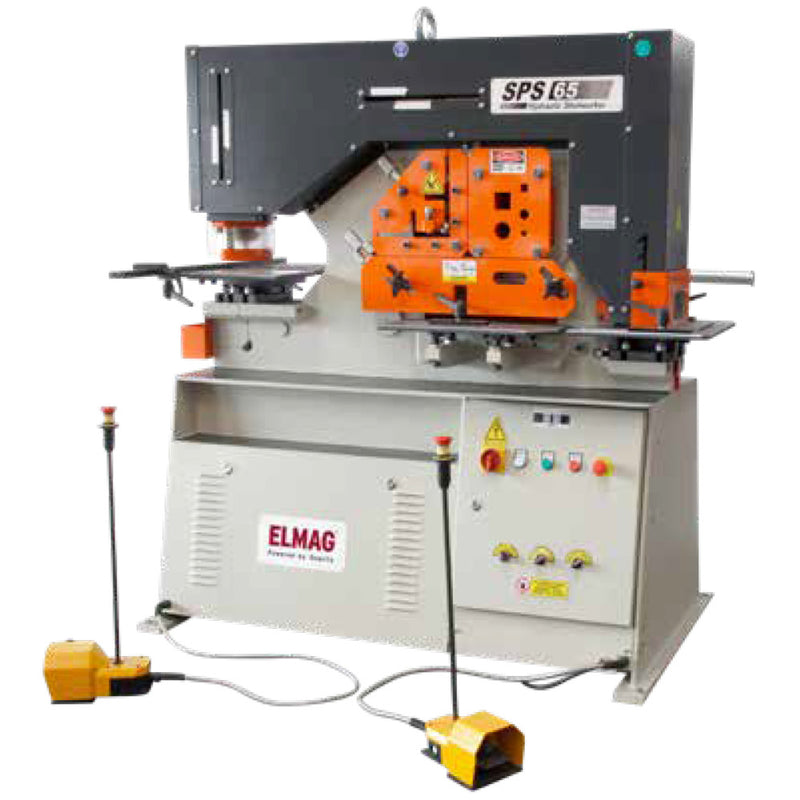

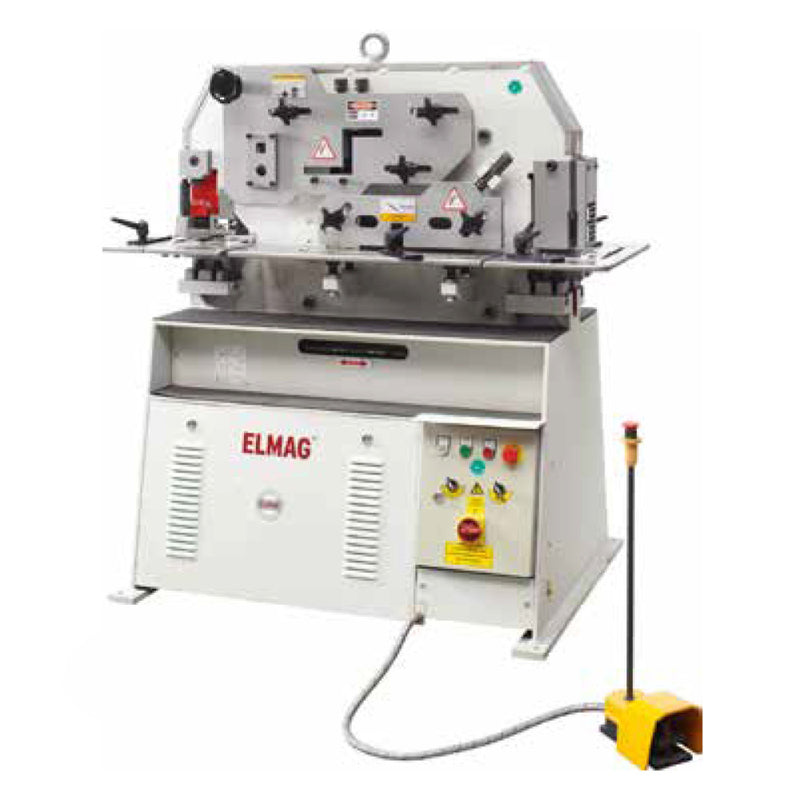

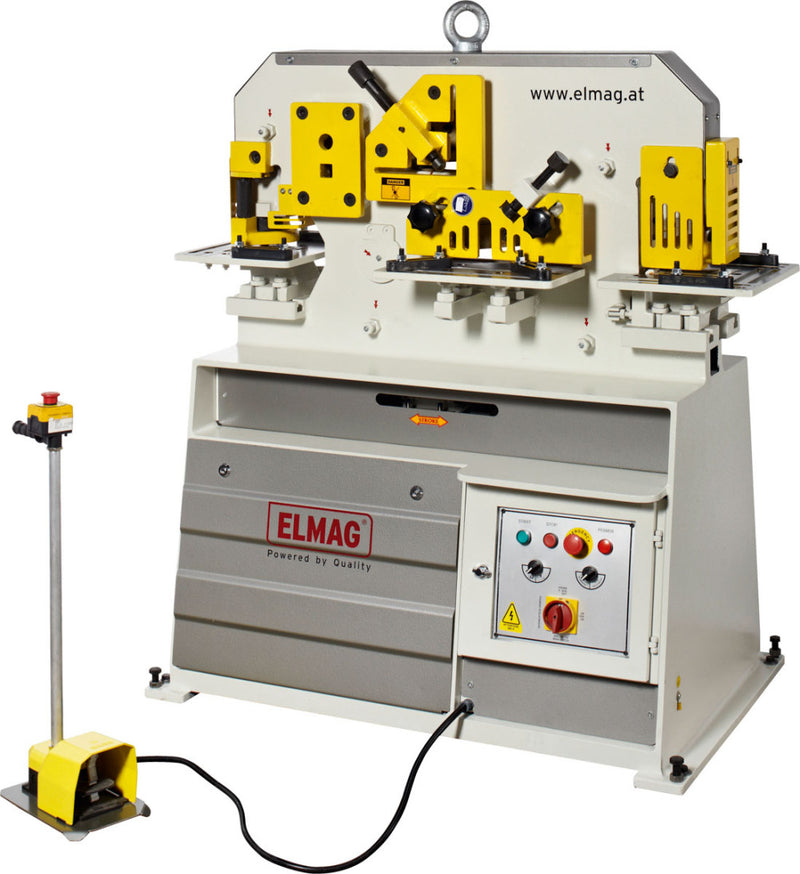

Hydraulic Profile Cutters and Punches (ELMAG SPS)

ELMAG SPS

Hydraulic profile cutters and punchers

• safe, precise sheet metal processing, fast profile cutting, high repeatability
• well-equipped, ready-to-operate workstations
• workstations: punching station, bar steel station, profile steel station, flat steel station, notching station
• the machine has a stamp and die system that is compatible with MUBEA tools
• additional equipment: round steel knife, four-edge steel knife, angle shear, flat steel knife.
• the machine is equipped with 5 processing stations (and one square notching knife)
• 45 t pressing force (with a dual piston system that allows simultaneous punching and notching operations
  to be performed)
• 20 strokes/minute speed ensures that successive punching steps are performed at a fast pace,
  e.g., for hole cutouts
• ideal for single and series production as well as for long holes

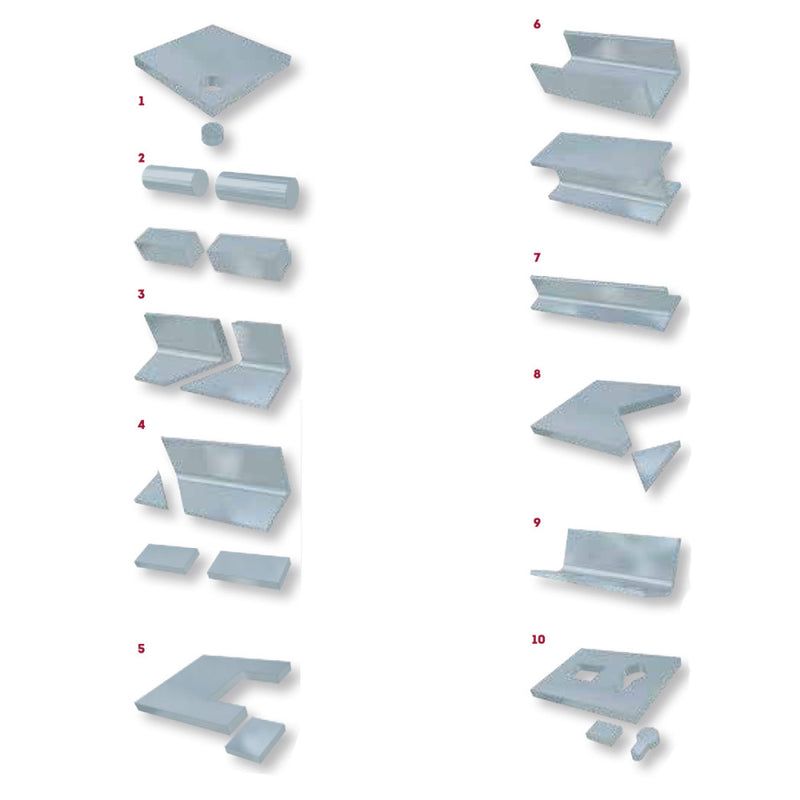

• precise processing of round steels, square steels, angle steels and flat steels is carried out at special
  processing stations
• ideal working height, smooth-running quick-release elements, easy tool changes, and the central
  lubrication system ensure simple and quick machine operation and almost maintenance-free operation
• punching and cutting processes are simple and safe. Can be initiated from the foot pedal of the mobile
  control column.
• safety: EMERGENCY STOP button on the mobile control panels

Warranty: 2+1 years

Accessories:

• round punch and die
• round steel and square steel knives
• angle cutting knife
• flat steel knife
• square notching knife
• mobile control column with foot switch and EMERGENCY STOP switch
• central lubrication system
• Hungarian operating instructions / CE certificate
