Electro-hydraulic rebar cutter (Ø50mm) 380V/7.5kW (AF-H50)
Original price
0 Ft
-
Original price
0 Ft
Original price
0 Ft
2.214.664 Ft
2.214.664 Ft
-
2.214.664 Ft
Current price
2.214.664 Ft
Nettó ár:
1.743.830 Ft
Availability:
Low stock
| Technical Parameters: | |
| Model: | AF-H50 |
| Voltage: | 380V / 7.5kW |
| Cutting Capacity: | Ø50 mm |
| Cutting Speed: | 10 sec/piece |
| Weight: | 600.0 kg |
| Shipping Dimensions: | 160x100x80 cm |

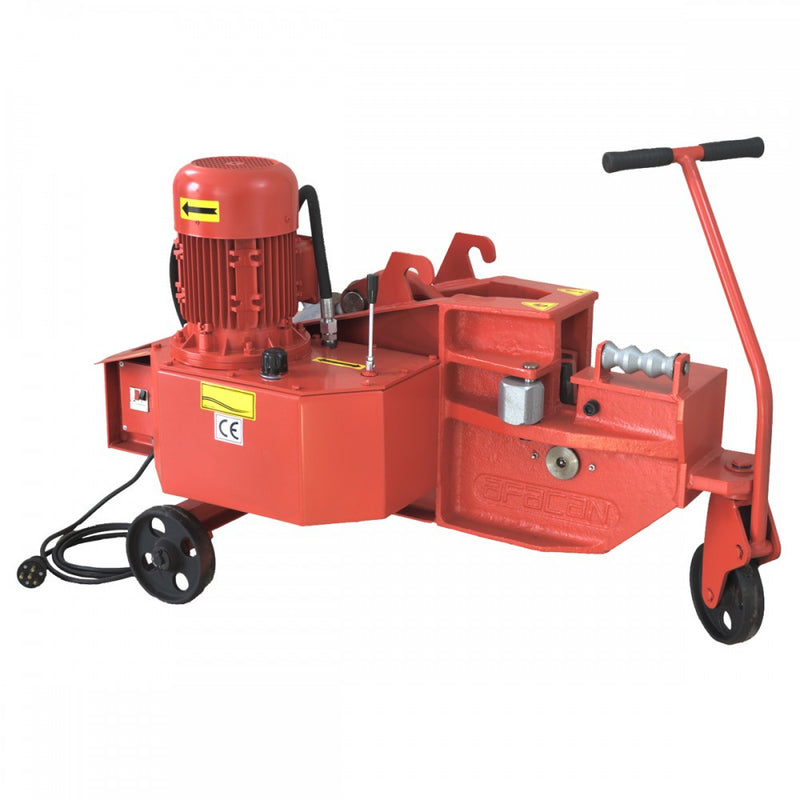

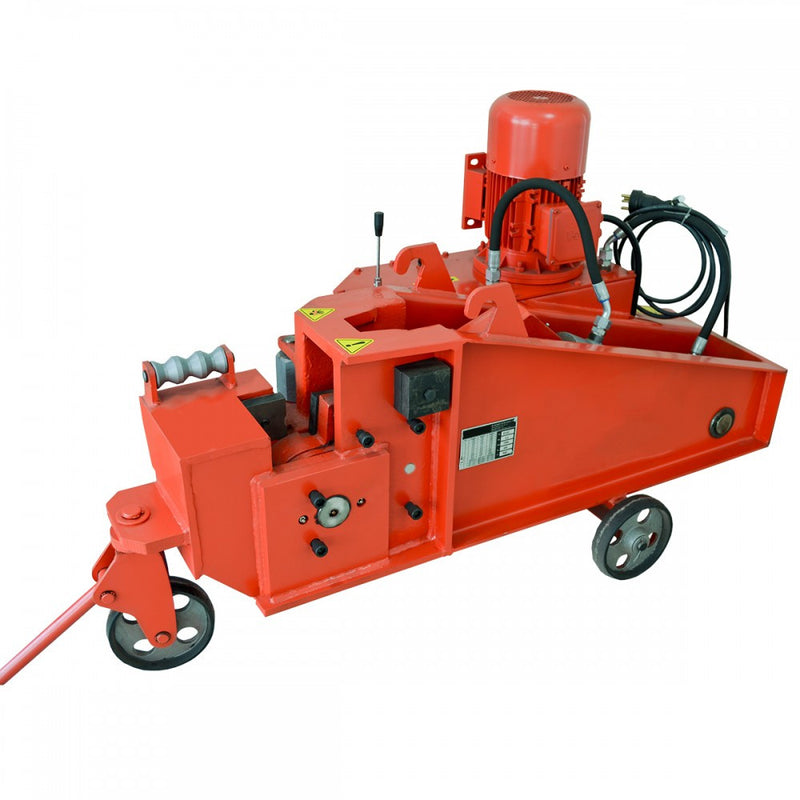

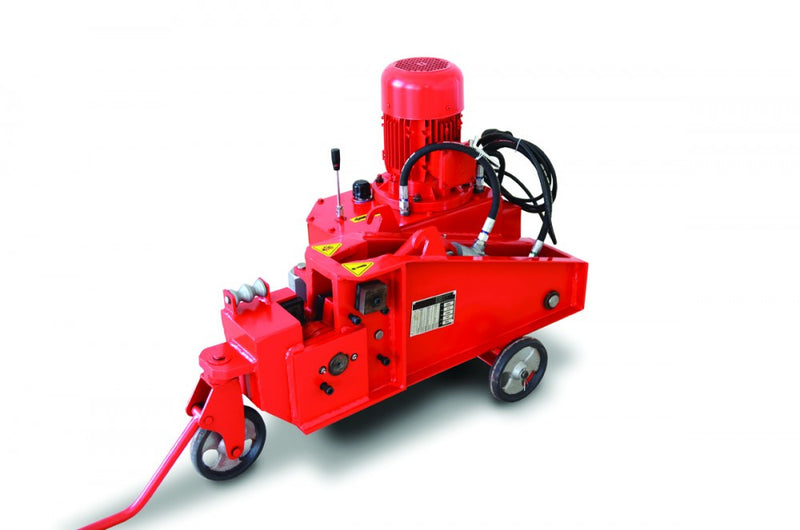

HYDRAFORE AF-H50
Portable electro-hydraulic rebar cutter, Ø50mm
- Voltage used 380 V / 3 phase
- Motor power 7.5 kW / 10Hp
- RPM: 1500rpm
- Cutting capacity:
|
Material Quality |
1 pc | 2 pcs | 3 pcs | 4 pcs | 5 pcs |
| 45 kg/mm2 | Ø50 | Ø32 | Ø22 | Ø18 | Ø12 |
| 65 kg/mm2 | Ø42 | Ø26 | Ø18 | Ø14 | Ø10 |
| 85 kg/mm | Ø36 | Ø24 | Ø16 | Ø12 | Ø8 |
- Strong cutting performance.

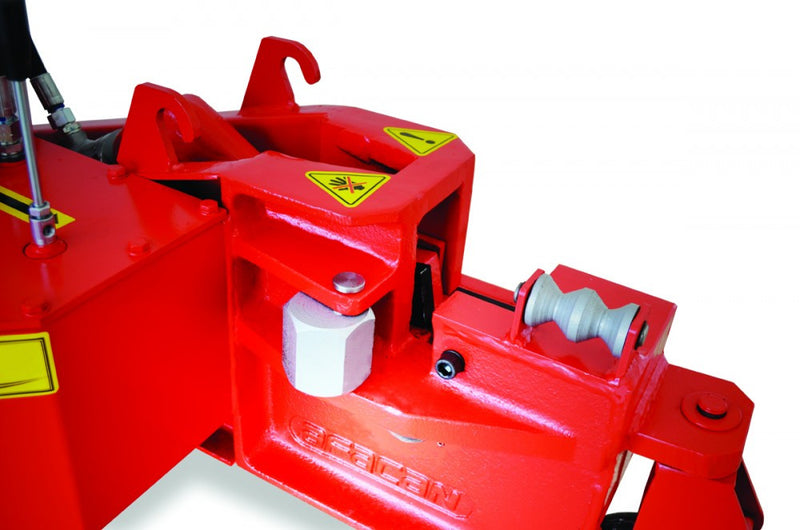

- The cutting head is located separately from the motor.
- Cutting heads automatically return to their home position.
- Cutting time approx. 10 seconds/piece.
- Ideal for small construction sites.
*2-year EZ-Tools warranty for all our HYDRAFORE brand products!
