Electric Rebar Bending Machine 380V/7.5kW, Ø50mm (AF-B50)
Original price
0 Ft
-
Original price
0 Ft
Original price
0 Ft
1.846.072 Ft
1.846.072 Ft
-
1.846.072 Ft
Current price
1.846.072 Ft
Nettó ár:
1.453.600 Ft
Availability:
Low stock
| Technical parameters: | |
| Model: | AF-B50 |
| Voltage: | 380 V / 50 Hz |
| Power: | 7500 W / 10.0 HP |
| Bending time: | 5 s |
| Max. bendable diameter: | Ø50 mm (45kg/mm2) |
| Bending angle range: | 0-180° |
| RPM: | 7 RPM |
| Weight: | 600 kg |
| Shipping dimensions: | 100x125x95 cm |

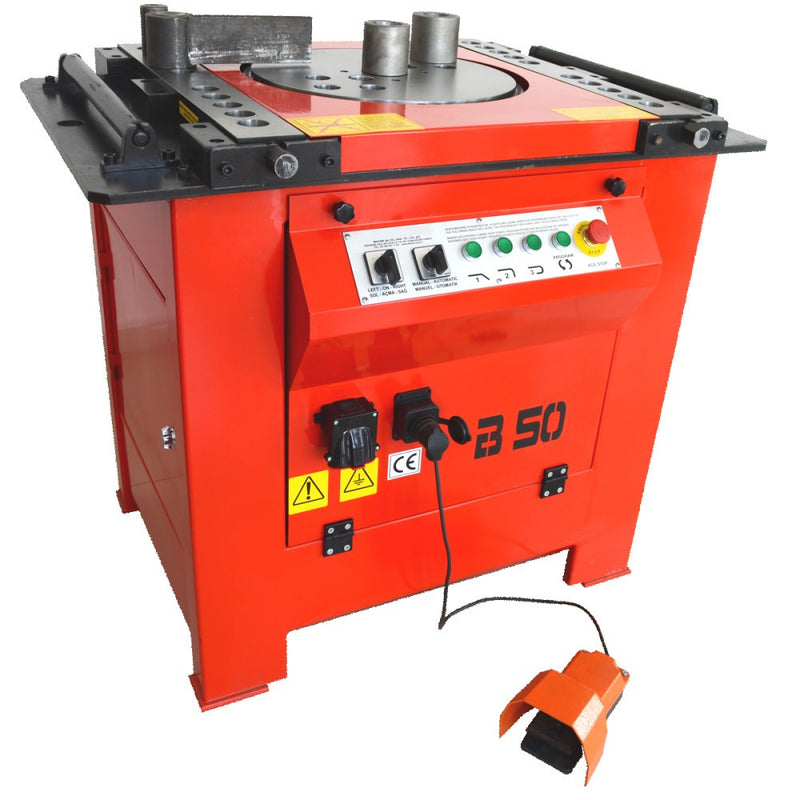

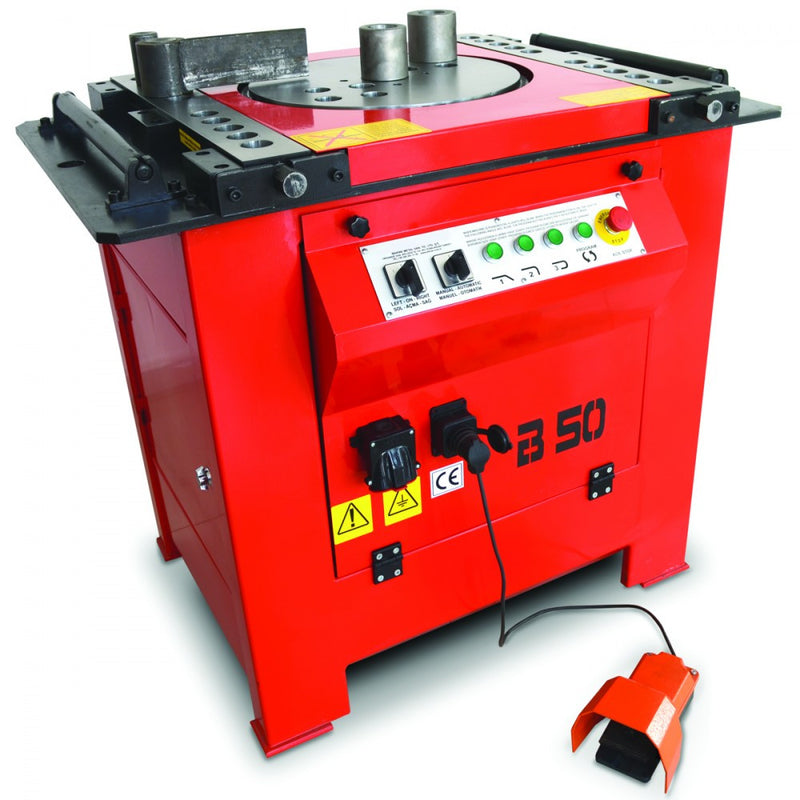

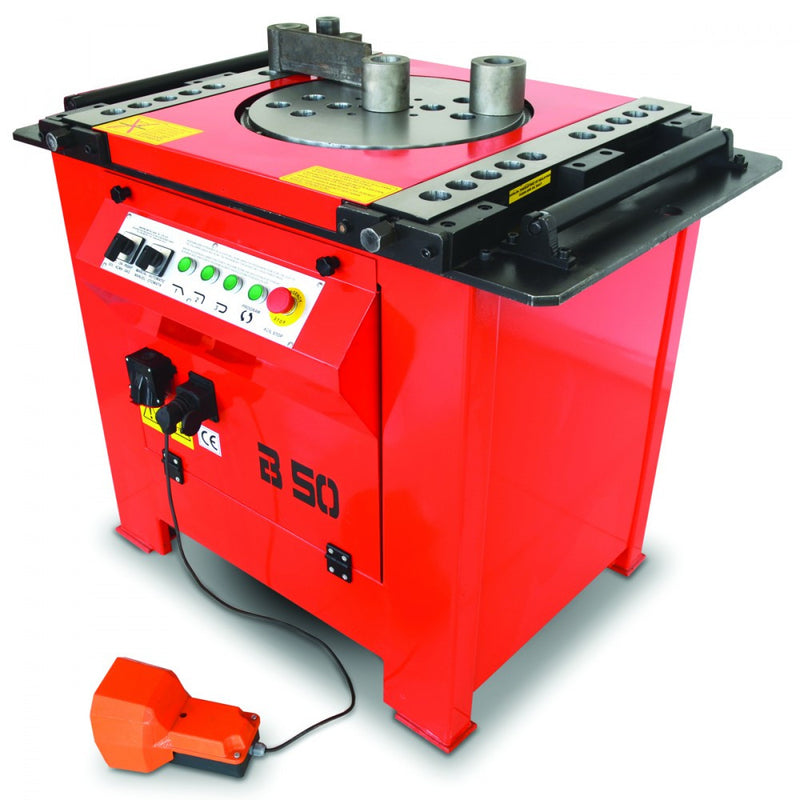

HYDRAFORE AF-B50
Electric rebar bending machine
- Operating voltage 380 V / 3 phases
- Motor power 7.5 kW / 10 HP
Bending capacity:
|
Material quality |
1 pc | 2 pcs | 3 pcs | 4 pcs | 6 pcs |
| 45 kg/mm2 | Ø50 | Ø32 | Ø24 | Ø20 | Ø16 |
| 65 kg/mm2 | Ø42 | Ø28 | Ø20 | Ø18 | Ø16 |
| 85 kg/mm2 | Ø36 | Ø24 | Ø18 | Ø16 | Ø14 |
- The B50 is designed for maximum performance and durability.
- Specially designed gearbox.

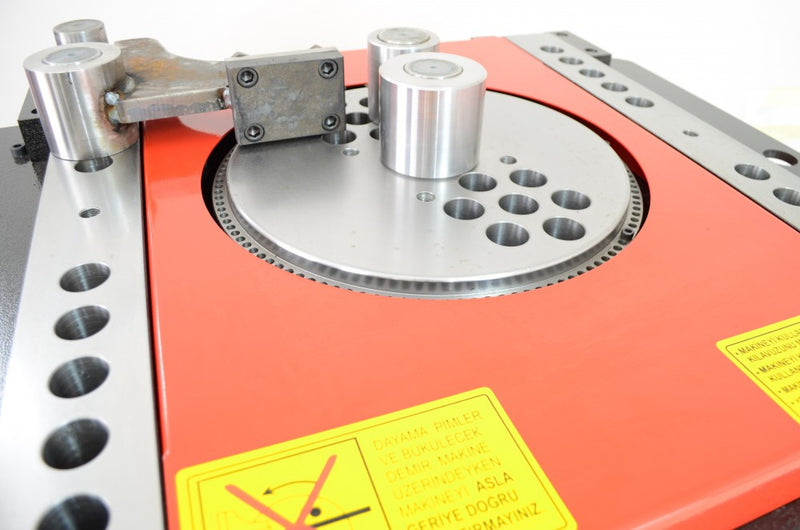

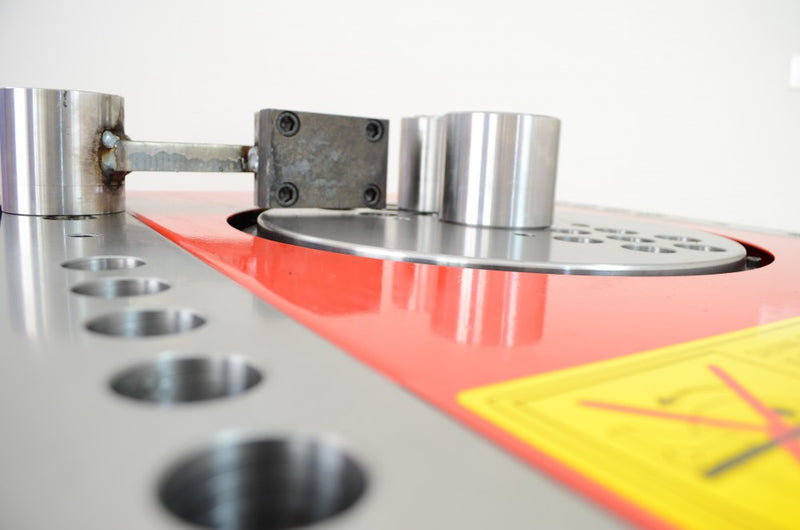

- With hardened bending tools.
- Easy to handle, simple operation helps to perform work quickly and precisely.
- Robust construction, strong structure ensures durability.
- Multiple rebars can be bent simultaneously in one work phase, saving time.
- Recessed start button and emergency stop button for safety.
- With emergency stop pedal.
*2-year EZ-Tools warranty on all our products under the HYDRAFORE brand!
