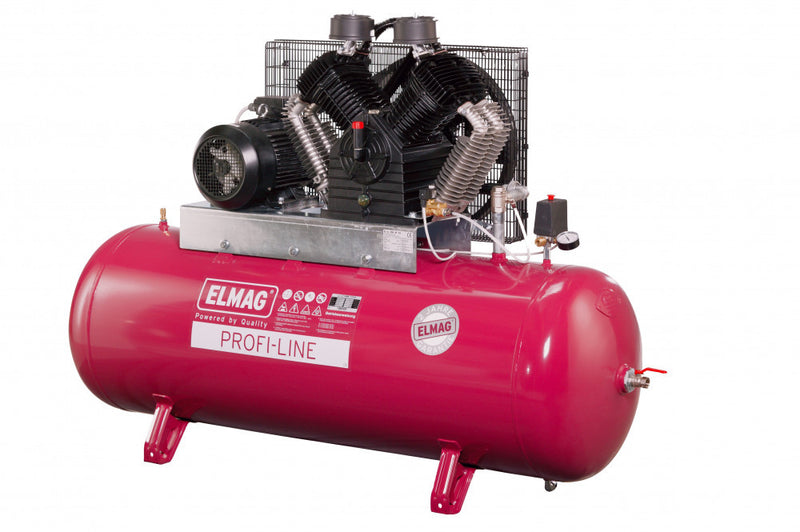

PROFI-LINE PL 1600/10/270 D compressor (ELMAG 11034)
Sold out
Original price
0 Ft
-
Original price
0 Ft
Original price
0 Ft
2.449.830 Ft
2.449.830 Ft
-
2.449.830 Ft
Current price
2.449.830 Ft
Nettó ár:
1.929.000 Ft
Availability:
Out of stock
| Technical parameters: | |
| Model: | PL 1600/10/270 D (11034) |
| Actual delivery quantity: | 1120 liters/minute |
| Suction capacity: | 1600 liters/minute |
| Maximum operating pressure: |
10 bar |
| Oil lubrication: | Yes |
| Tank capacity: | 270 liters |
| Rated power: | 11 kW / 15 hp |
| Voltage / frequency: | 400 V / 50 Hz |
| Sound pressure level (4 m): | 78 dB |
| Compressor speed: | 1100 rpm |
| Air connection: | 1/2" |
| Length: | 162 cm |
| Width: | 58 cm |
| Height: | 139 cm |
| Weight: | 240 kg |
ELMAG 11034
PROFI-LINE PL 1600/10/270 D compressor
- High-performance compressors for professional use
- Robust industrial design with high efficiency
- Total speed max. 1360 rpm: Long service life, low noise level
- 2-stage, 2- or 4-cylinder units with cast iron cylinder and large intermediate andaftercoolers made of aluminum die-cast
- Unique air cooling system - less condensation

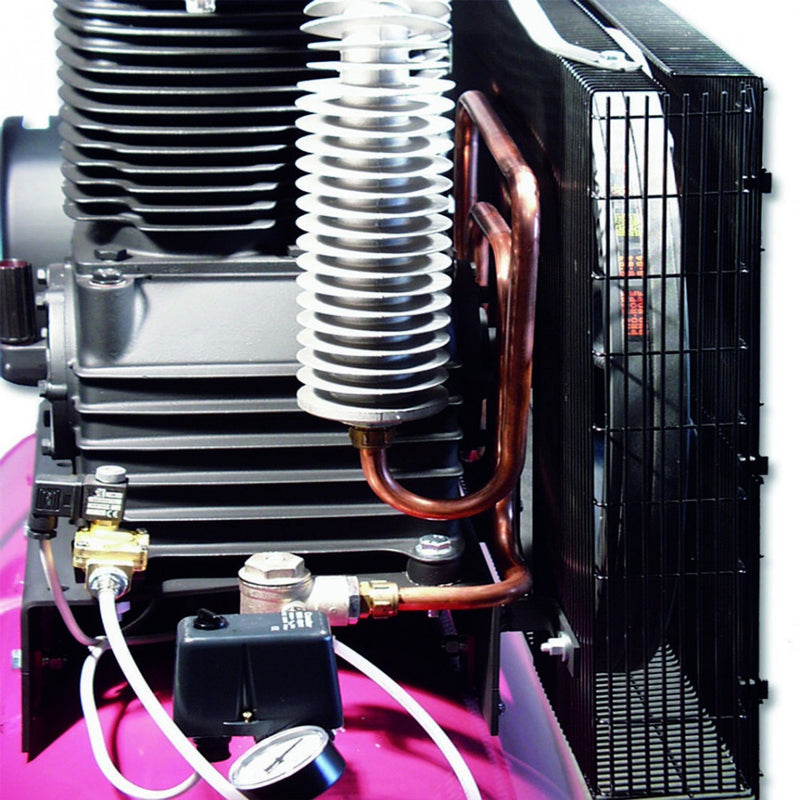

- Extremely low air inlet temperature (max. 50 - 60 °C) through the copper cooling pipe running behind the cooling wheel
- Models with tank volumes of 50, 100, and 200 liters are movable on solid rubber tires,equipped with swivel castors with brakes and a filter pressure regulator
- Models from a 270-liter boiler are equipped with fixed vibration dampers (without filter pressure regulator)
- "PL(H)V" models in space-saving vertical design
-

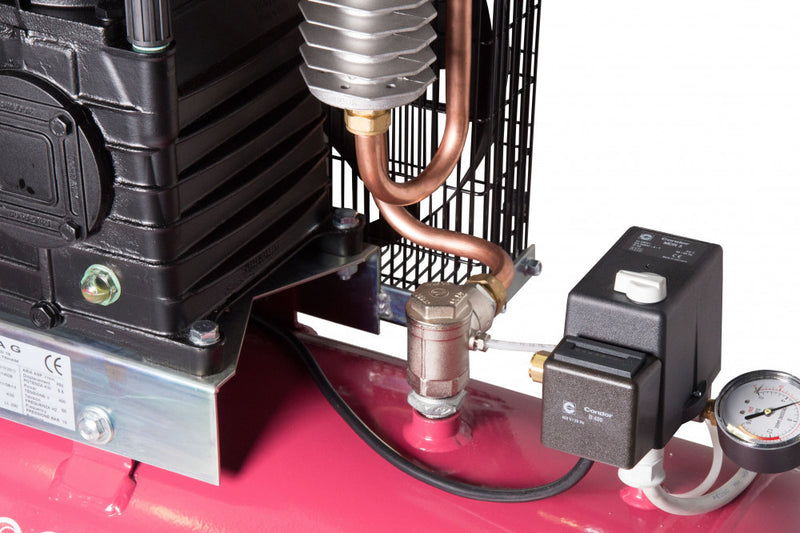

Hour meter and safety bleed connections
as standard
Warranty: 2 years
Compressor accessories:
› Operating tool kit
› Operating instructions (Hungarian)
CE certificate
