PROFI-LINE PL 840/10/270 D Compressor (ELMAG 11024)
Sold out
Original price
0 Ft
-
Original price
0 Ft
Original price
0 Ft
1.384.173 Ft
1.384.173 Ft
-
1.384.173 Ft
Current price
1.384.173 Ft
Nettó ár:
1.089.900 Ft
Availability:
Out of stock
| Technical Parameters: | |
| Model: | PL 840/10/270 D (11024) |
| Effective delivery rate: | 595 liters/minute |
| Suction capacity: | 850 liters/minute |
| Maximum operating pressure: |
10 bar |
| Oil lubrication: | Yes |
| Tank capacity: | 270 liters |
| Rated power: | 5.5 kW / 7.5 HP |
| Voltage / frequency: | 400 V / 50 Hz |
| Sound pressure level (4 m): | 76 dB |
| Compressor speed: | 1150 rpm |
| Air connection: | 1/2" |
| Length: | 162 cm |
| Width: | 58 cm |
| Height: | 129 cm |
| Weight: | 185 kg |
ELMAG 11024

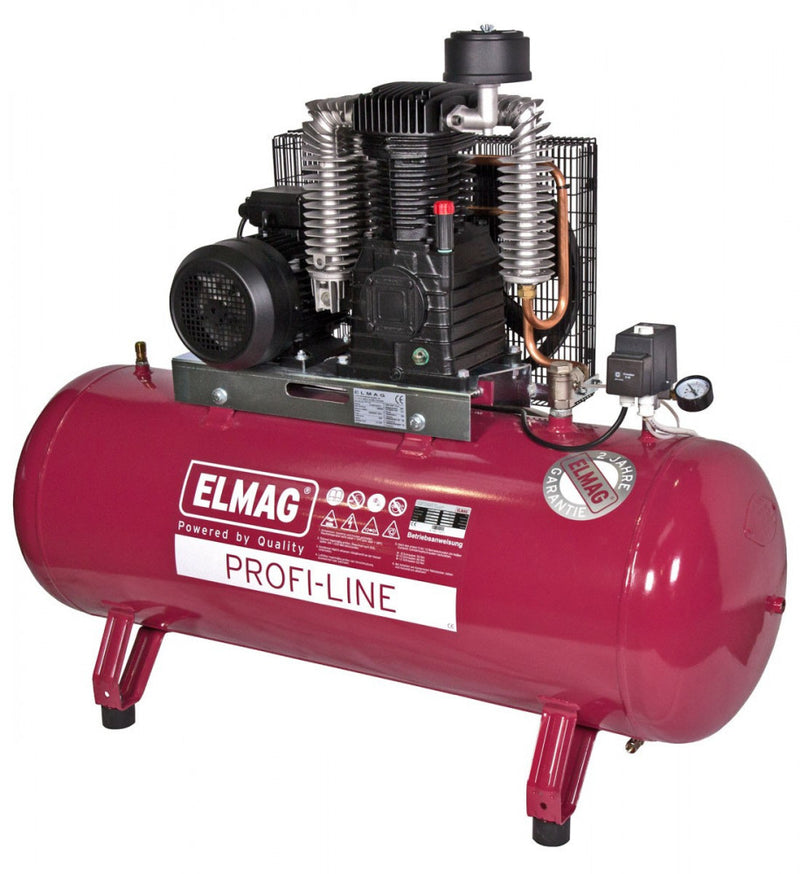

PROFI-LINE PL 840/10/270 D compressor
- High-performance compressors for professional use
- Robust industrial design with high efficiency
- Total speed max. 1360 rpm: Long service life, low noise level
- 2-stage, 2 or 4 cylinder units with cast iron cylinder and large intermediate and aftercoolers made of die-cast aluminum
- Unique air cooling system - less condensate

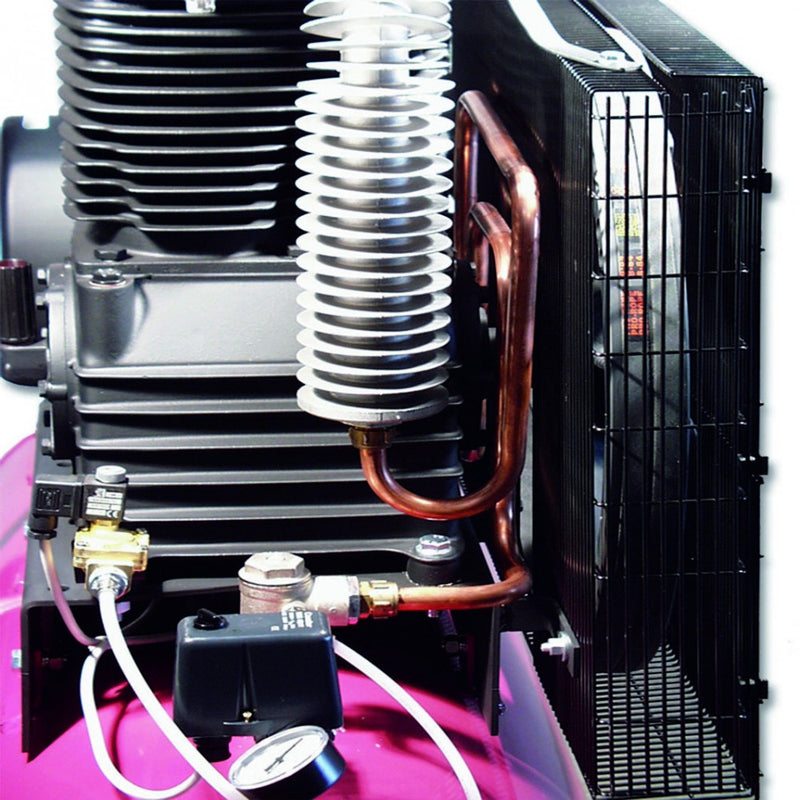

- Extremely low air intake temperature (max. 50 - 60 °C) through the copper cooling pipe running behind the cooling wheel
- Models with tank volumes of 50, 100, and 200 liters are mobile on solid rubber tires, equipped with swivel casters with brakes and a filter pressure regulator
- Models from 270 liter tank capacity are equipped with fixed anti-vibration mounts (without filter pressure regulator)
- "PL(H)V" models in space-saving vertical design
-

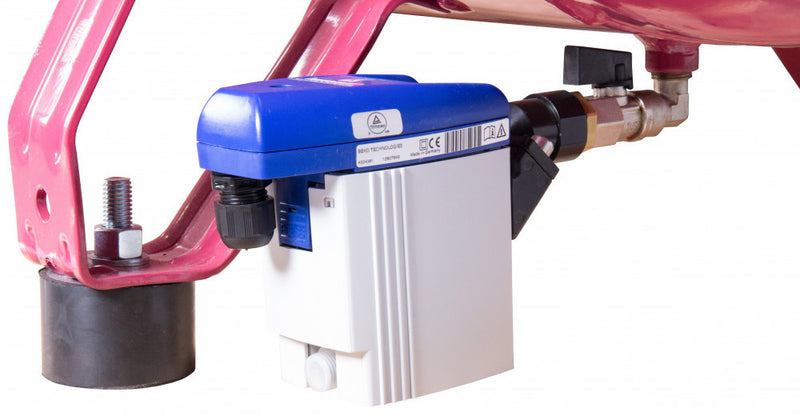

Hour meter and safety drain connections
as standard
Warranty: 2 years
Compressor accessories:
› Operator's toolkit
› Operating instructions (in Hungarian)
CE certificate
