*The image is illustrative, it does not reflect the dimensions of the drill bit! You can find the exact dimensions in the table below.

DeWALT DT90017-QZ

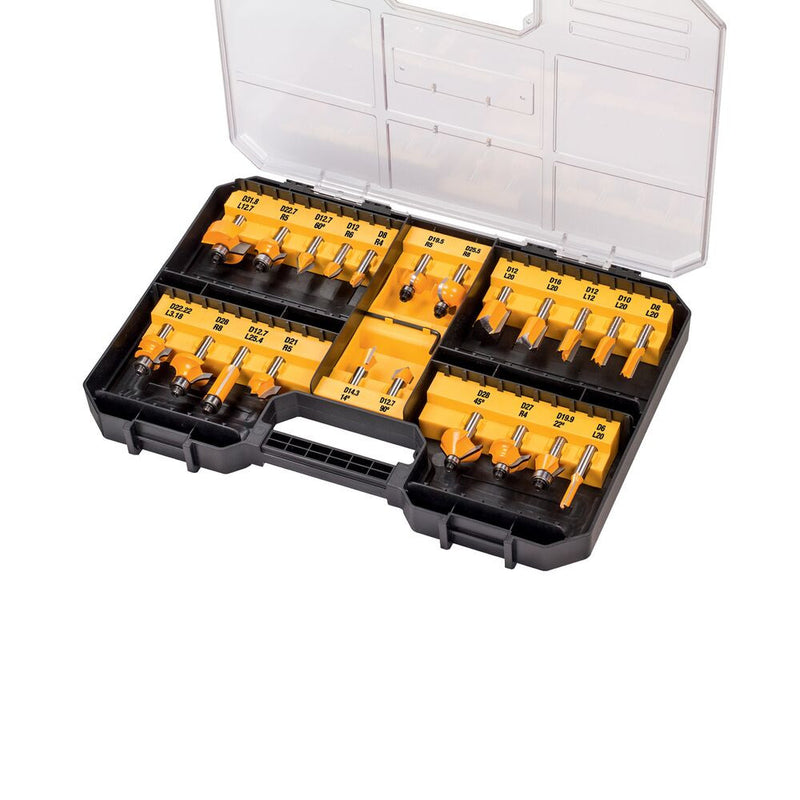

Router bit set 22 pcs

• Rounding cutters are used for rounding, e.g. table and worktops, frame elements, cabinets and furniture elements, e.g. for profiling edges in frame and stand manufacturing.

• For hardwoods and MDF.

• For routing.

Contents:

• Straight bit (∅ 6 mm, working length 20 mm)
• Straight bit (∅ 8 mm, working length 20 mm)
• Straight bit (∅ 10 mm, working length 20 mm)
• Straight bit (∅ 12 mm, working length 20 mm)
• Straight bit (∅ 16 mm, working length 20 mm)

• Straight bit (∅ 20 mm, working length 20 mm)

• Dovetail bit (∅ 14.3 mm, 14°)

• Core box bit (∅ 8 mm, radius 4 mm)

• Core box bit (∅ 12 mm, radius 6 mm)

• V-groove bit (∅ 12.7 mm, 60°)

• V-groove bit (∅ 12.7 mm, 90°)

• Cove bit (∅ 21 mm, radius 5 mm)

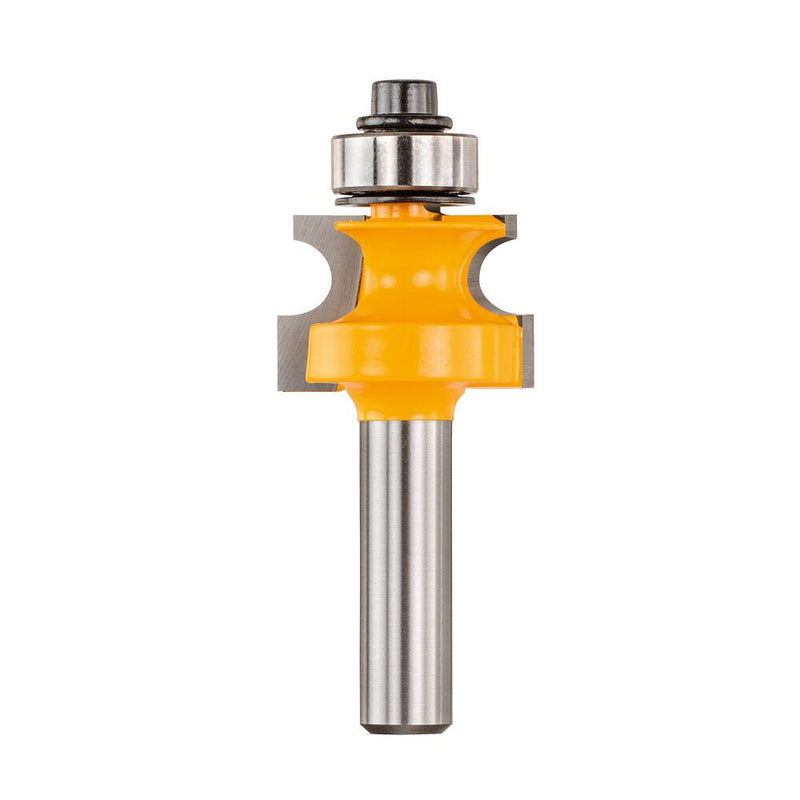

• Roman Ogee bit with bearing (∅ 22.22 mm, radius 3.2 mm)

• Chamfer bit with bearing (∅ 28.7 mm, 45°)

• Rounding over bit with bearing (∅ 22.7 mm, radius 5 mm)

• Rounding over bit with bearing (∅ 28.6 mm, radius 8 mm)

• Flush trim bit with bearing (∅ 19.9 mm, 22°)

• Plunge cut bit with bearing (∅ 12.7 mm, working length 25.4 mm)

• Decorative bit with bearing (∅ 27 mm, radius 4 mm)

• Dish cutter bit with bearing (∅ 19.5 mm, radius 5 mm)

• Dish cutter bit with bearing (∅ 25.5 mm, radius 8 mm)

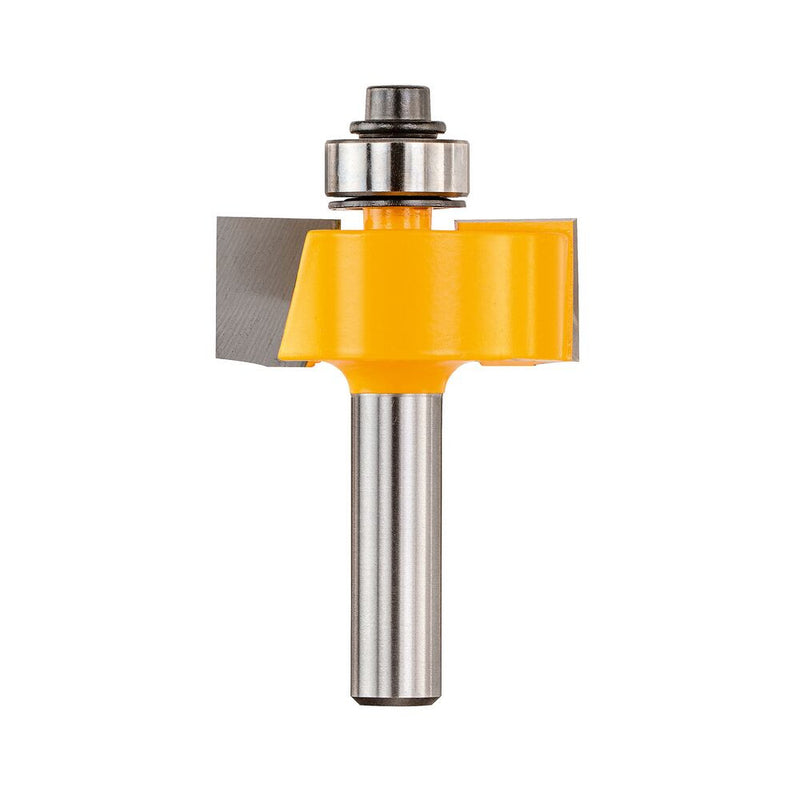

• Rebating bit with bearing (∅ 31.8 mm, working length 12.7 mm)
