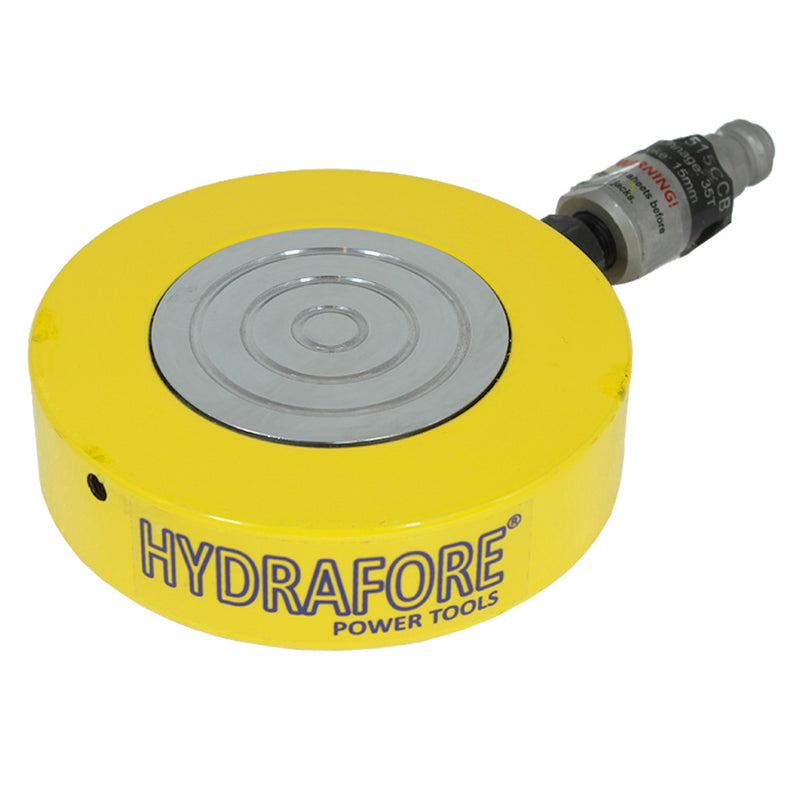

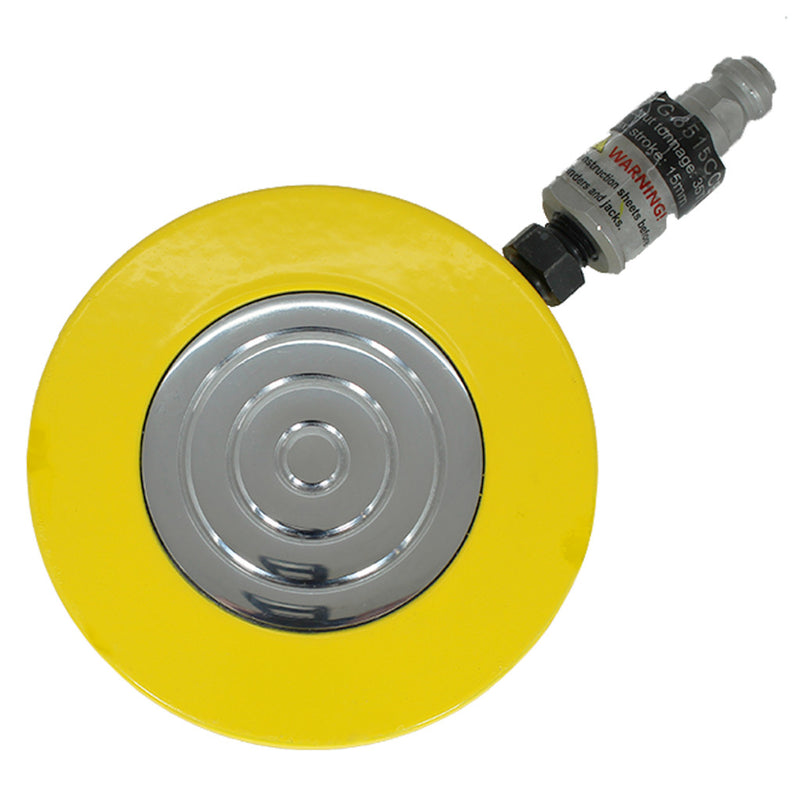

ULTRA High Pressure, ULTRA Low Hydraulic Cylinder (50T, 10mm) (YG-5010CGB)
Sold out
Original price
0 Ft
-
Original price
0 Ft
Original price
0 Ft
55.118 Ft
55.118 Ft
-
55.118 Ft
Current price
55.118 Ft
Nettó ár:
43.400 Ft
Availability:
Out of stock
| Technical parameters: | |
| Model: | YG-5010CGB |
| Power: | 50 T |
| Stroke length: | 10 mm |
| Oil capacity: | 38.5 cm3 |
| Retracted height: | 35 mm |
| Total height: | 45 mm |
| Outer diameter: | 150 mm |
| Piston outer diameter: | 80 mm |
| Recommended power supply: | B-180 |
| Weight: | 5.0 kg |
| Shipping size: | 21x16x5 cm |
HYDRAFORE YG-5010CGB
Hydraulic cylinder, low profile
- Operating pressure: 1500 bar
- Compact, flat design for use in tight spaces.
- Spring return.
- High strength alloy steel for durability.
- Chrome plated piston resists wear and corrosion.
- Baked enamel finish for increased corrosion resistance
- Grooved piston rods do not require a saddle.
- Mounting holes allow for easy fastening.
- All cylinders feature HH-II R2 3/8 plug half couplers and dust caps.
- Max. power reaches 50 tons, stroke length is only 10mm.
- Oil capacity is 38.5 cm3.
- Our recommendation: Compatible power supply: B-180
*2-year EZ-Tools warranty on all HYDRAFORE brand products!
